DEEBOT X9 PRO OMNI+WINBOT MINI
Key Features
DEEBOT X9 PRO OMNI:
BLAST (Boosted Large-Airflow Suction Technology)
• BLAST generates an unprecedented airflow rate of 16.3L/s, as well as a sufficient 16,600Pa suction power
• 137.6% increase in carpet dust removal rates

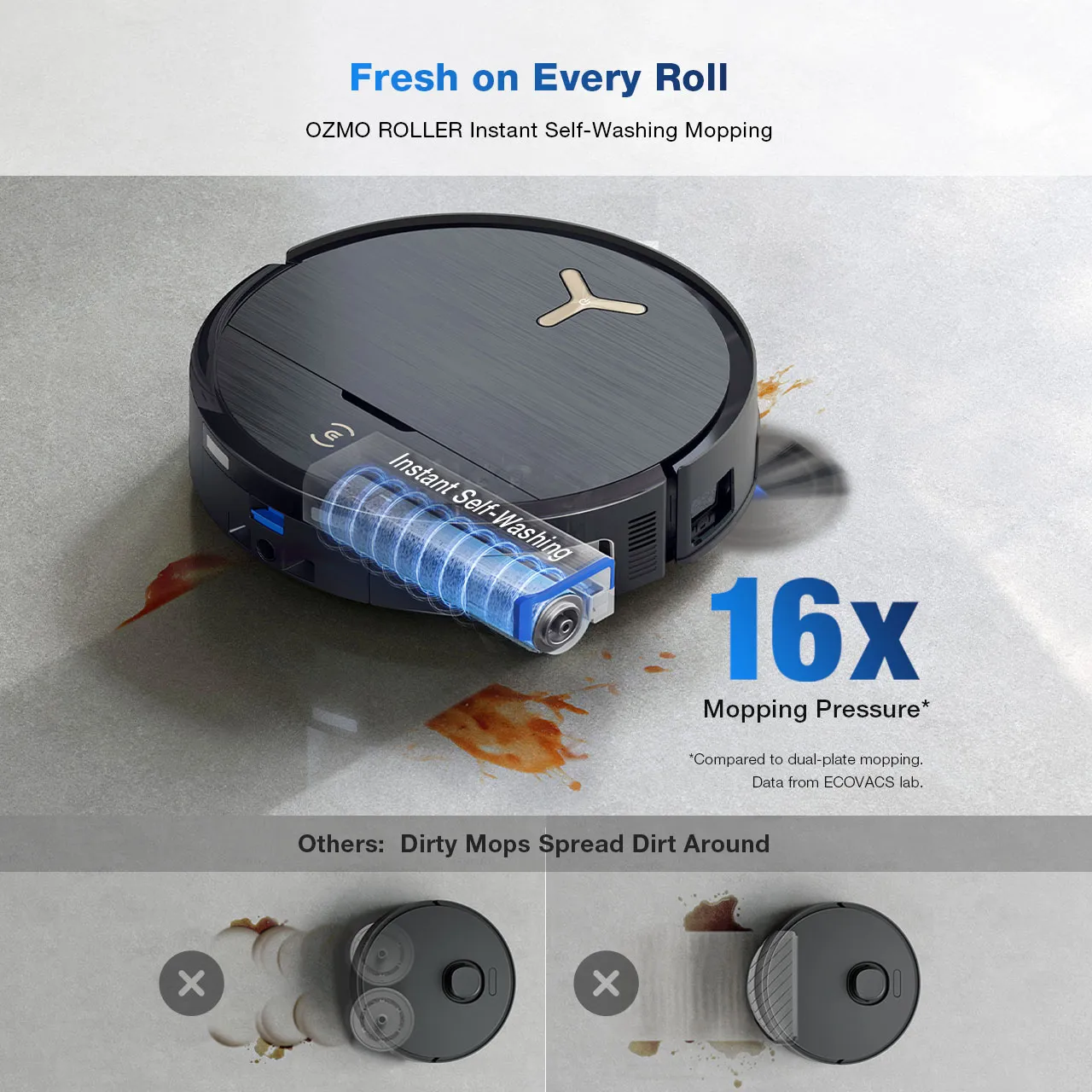

OZMO ROLLER Instant Self-Washing Mopping Technology
• higher mopping pressure (3,700Pa) +up to 220 rpm rolling speed
• thorough stain removal while preventing streaks and cross-contamination

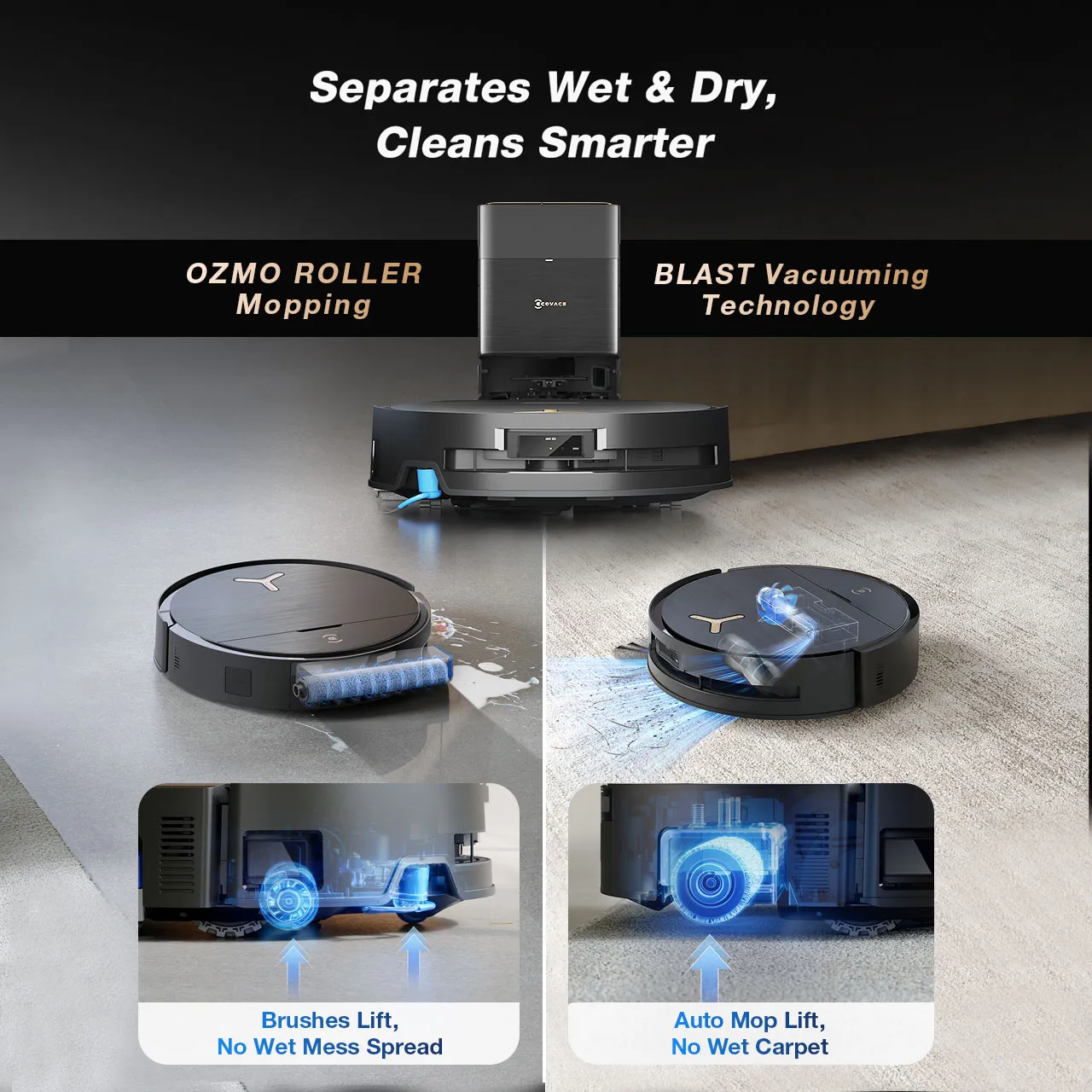

AI Stain Detection 2.0 & Triple Lift with Precision Dry-Wet Separation
• The AI Stain Detection 2.0 analyzes mess types intelligently
• Triple Lift System adapts to diverse cleaning challenges with Precision Dry-Wet Separation

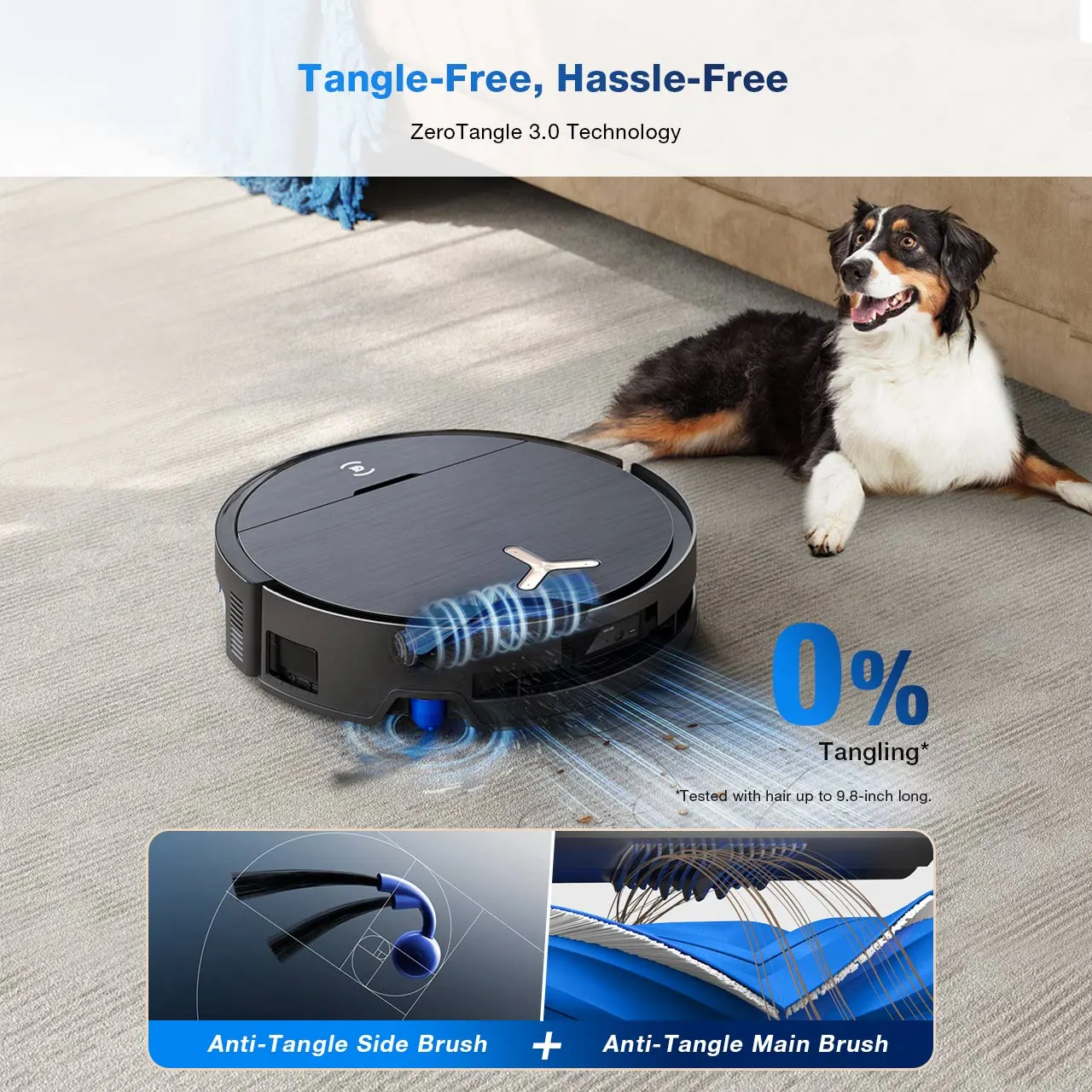

ZeroTangle 3.0 Anti-Tangle Technology
• it features the ARClean Anti-Tangle Side Brush and Cyclone-Directed Anti-Tangle Main Brush
• effectively eliminating hair tangles for uninterrupted performance.
TruEdge 2.0 with 3D Edge Sensor
• roller mop to extend dynamically during edge cleaning
• maximize the coverage at edges and corners

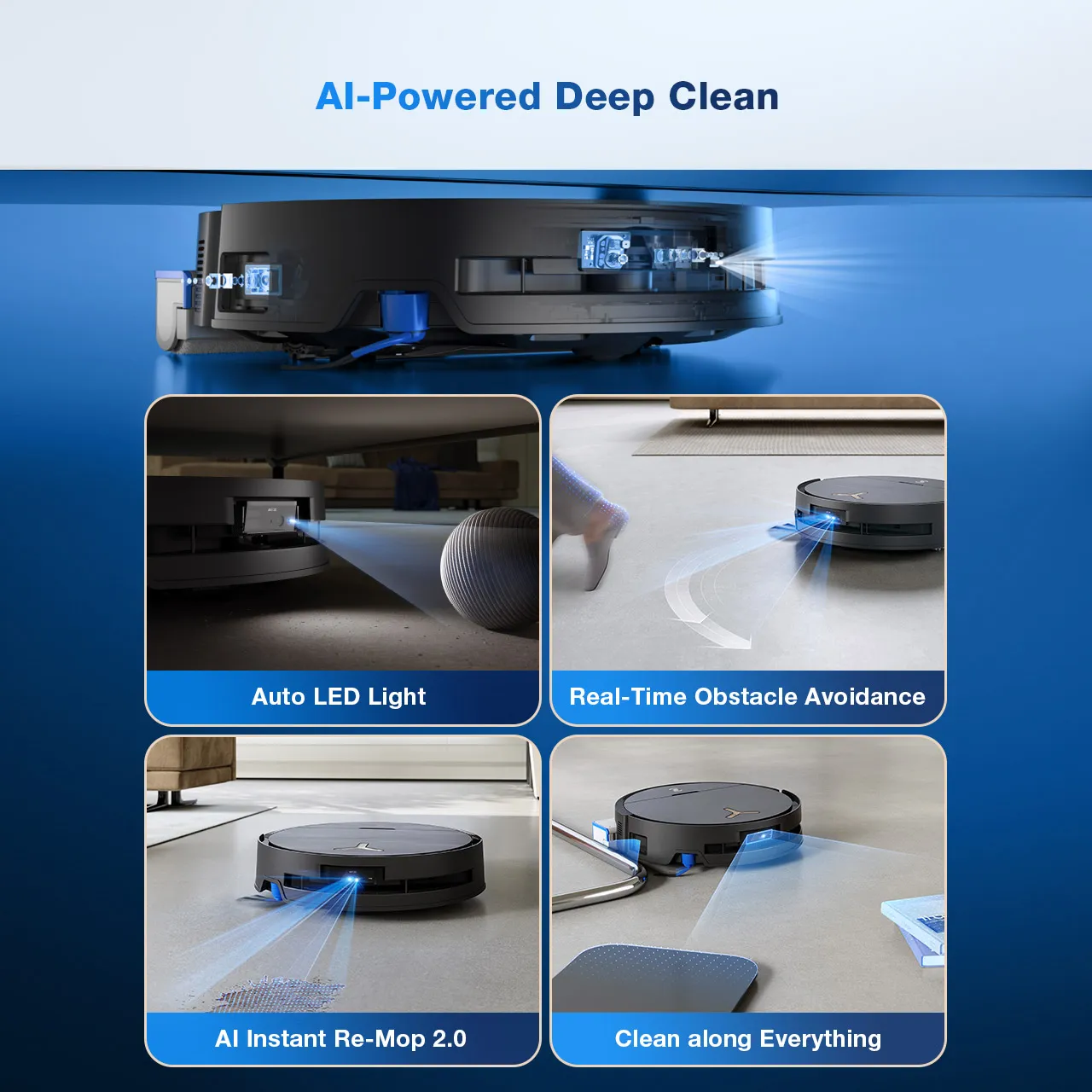

AIVI 3D 3.0
• Vision AI + 3D sensors detect obstacles instantly.
• Cleans edges tightly, avoids moving objects like pets instantly.
Industry first EV-Grade Pouch Battery
• 2.4 times battery life and 6400 mAh robust power
Upgraded OMNI Station with Innovation
• Temperature-Controlled Mop Washing 2.0
• 63°C Hot Air Drying
WINBOT MINI:

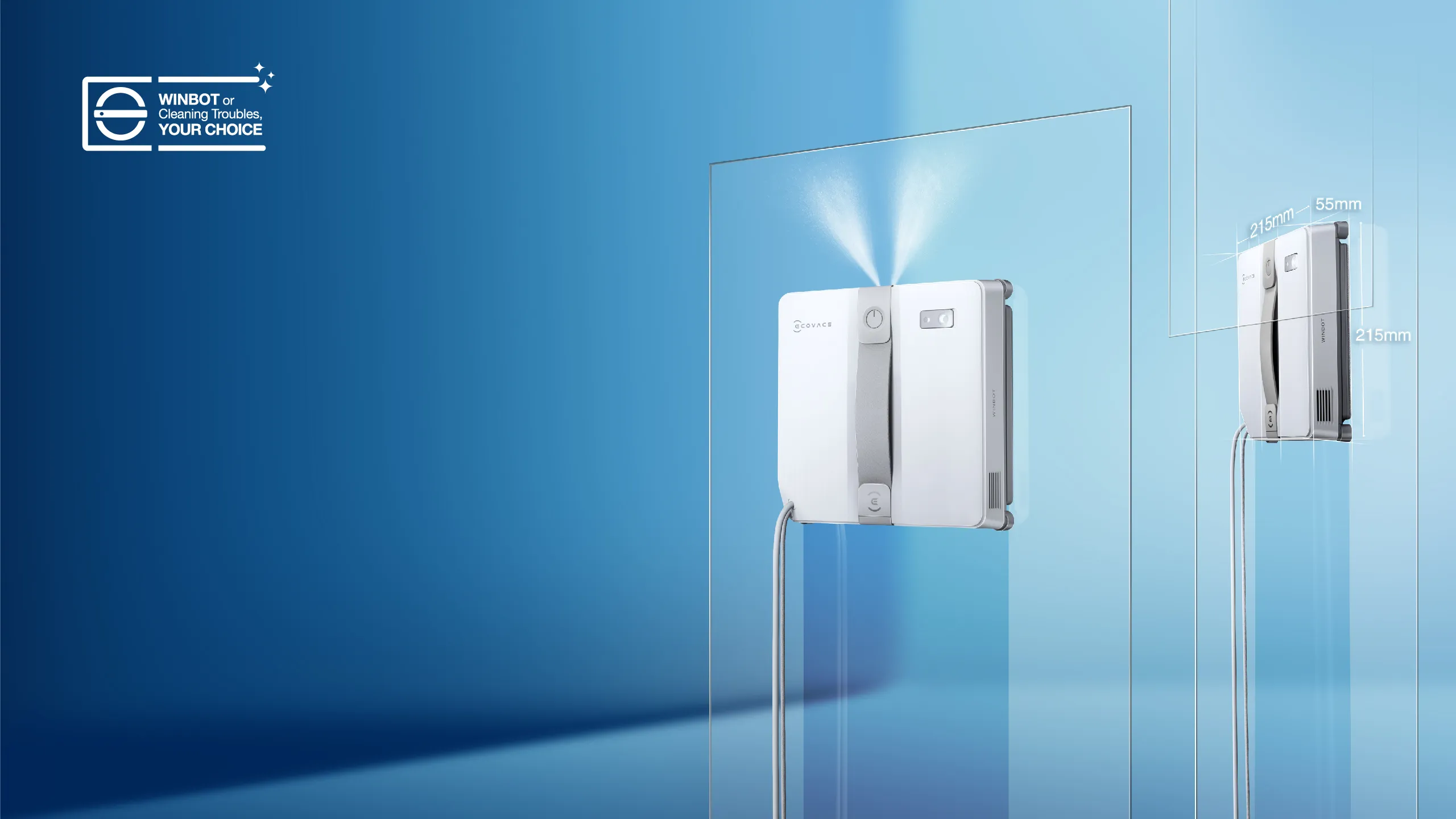

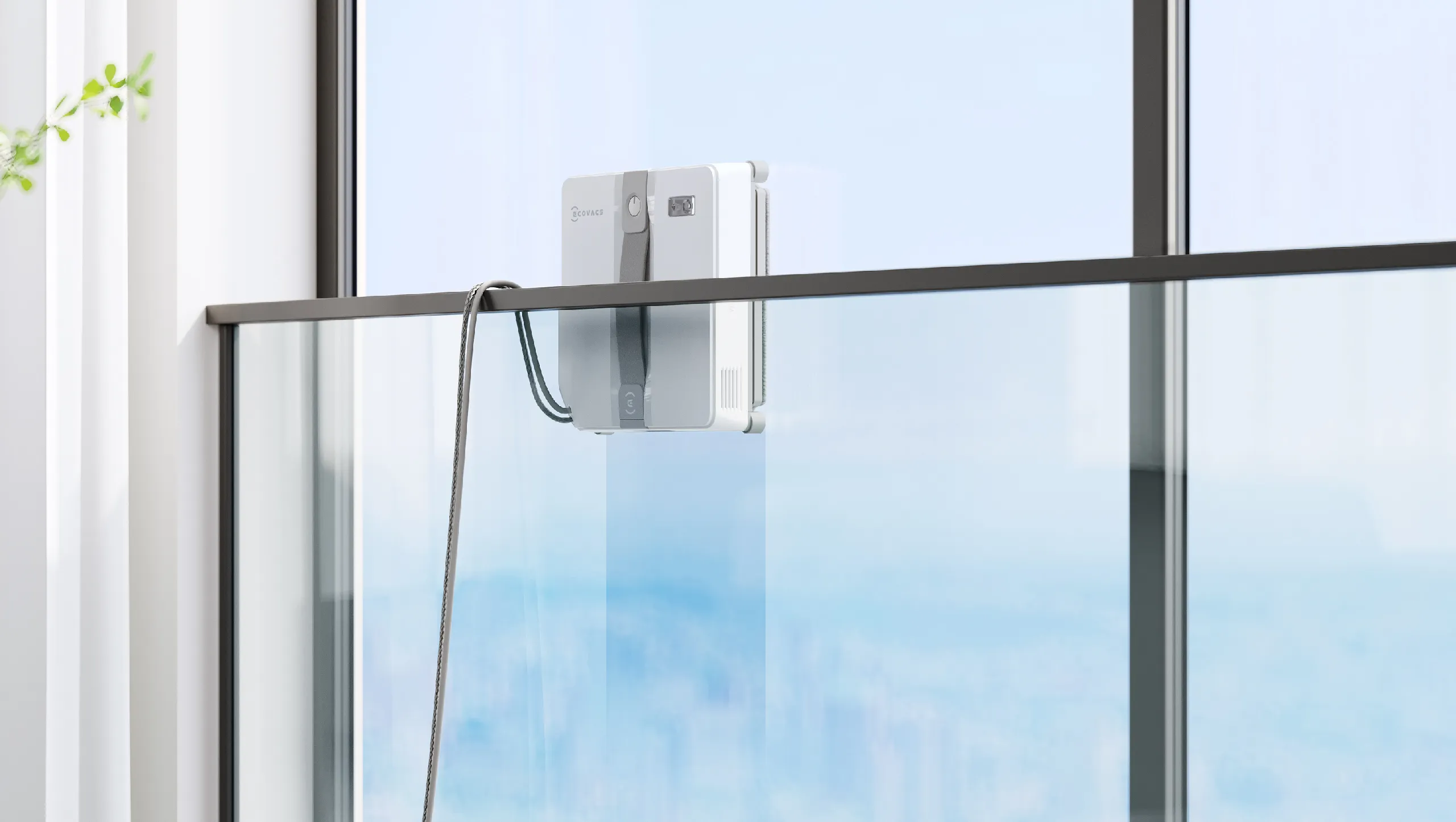

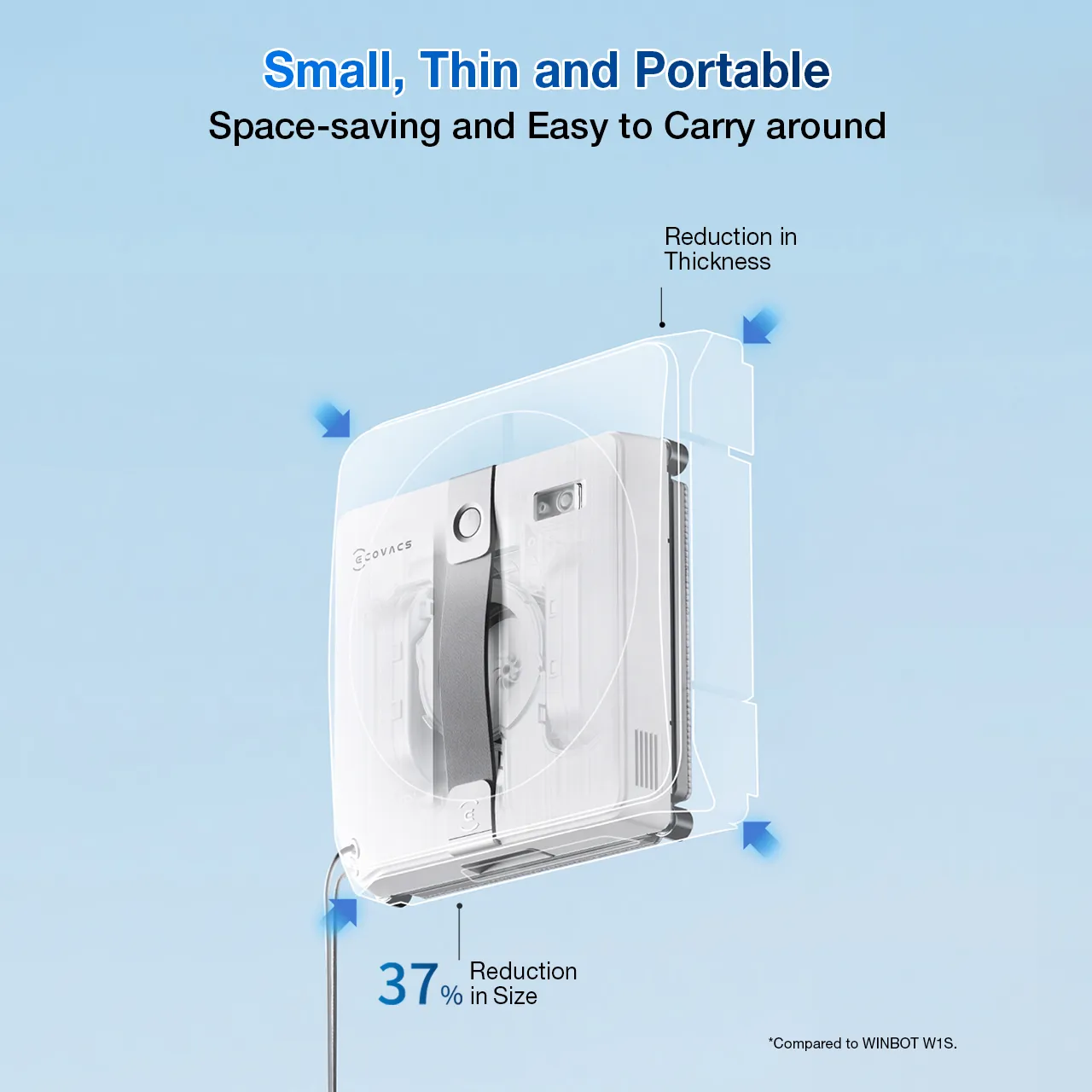

Impeccably compact design for hard-to-reach scenarios
• Redesigned from the inside out to achieve minimal size and fit into tight spaces

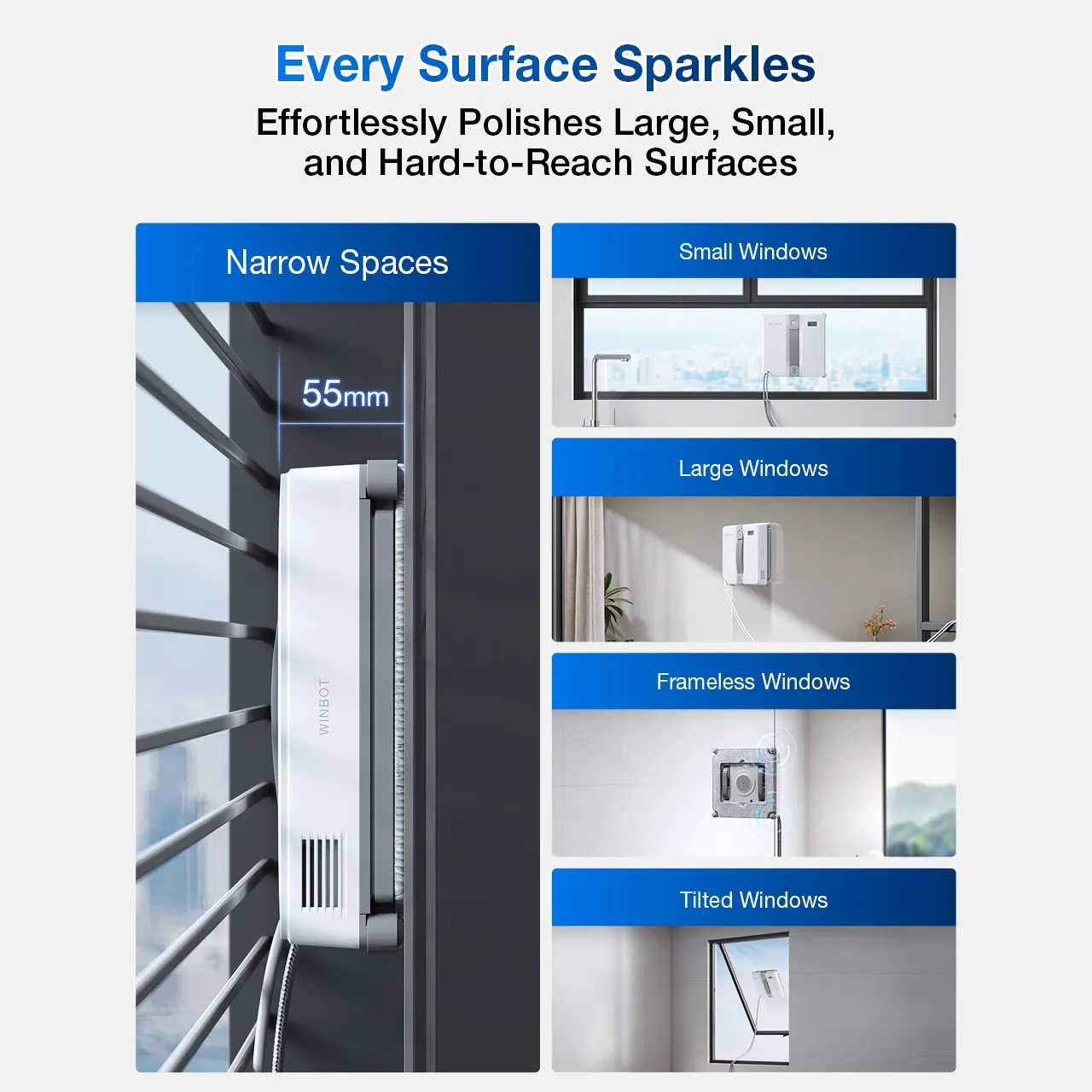

• Adapts flexibly to various narrow window cleaning scenarios
• Space-saving and easy to store

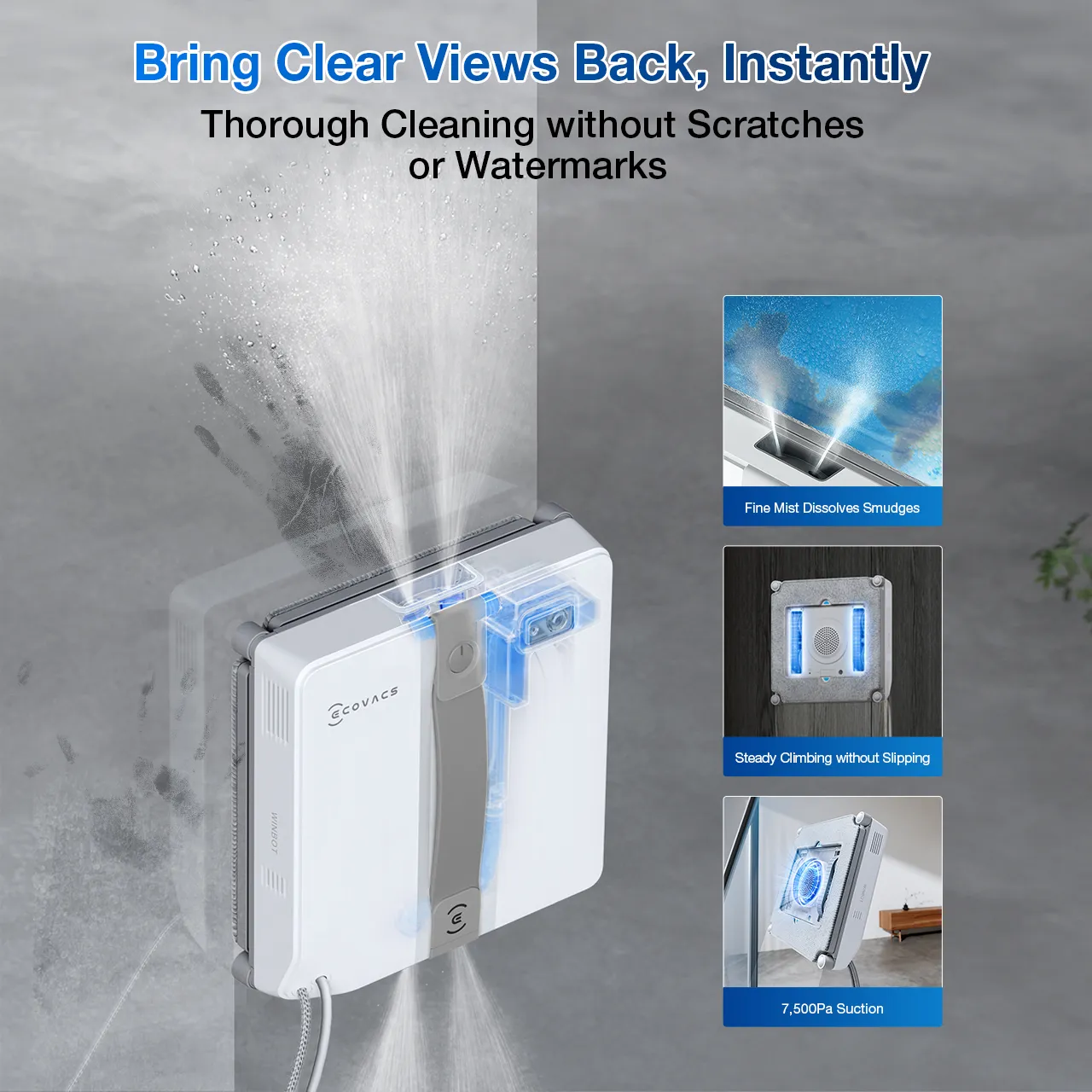

Compact yet powerful cleaning performance
• Ultrasonic atomization spray
• Achieve ultimate edge cleaning with up to 99.5% coverage
• Classic cleaning cloth design
9-stage protection for peace of mind
• 6-hardware-based fall protection measures
• 2-stage intelligent fall protection
• Accidental damage insurance
Smart cleaning for effortless living
• WIN-SLAM 3.0 algorithm
• Customized cleaning mode choices
• Accurate control with intutive ECOVACS HOME App
Choose Your Model

Revolutionary Cleaning Power: Ultimate Convergence of BLAST and OZMO ROLLER

Unmatched Vacuuming Efficiency Redefined by BLAST Solution Mopping Technology

Unlock Premium Floor Cleaning Performance with OZMO ROLLER Mopping Technology

Compact but Crystal Clear

Impecably compact design for hard-to-reach scenarios

- Minimum Window Size
- 22*25 (cm)
- Applicable Window
- all types of flat windows
- Auto Spray (Y/N)
- Yes
- Manual Spray (on APP)
- Yes
- Spray Width(cm)
- 8.5
- Spray Length (front)(cm)
- 10
- Spray Uniformity (variance)
- /
- Ratio of Spray Coverage
- /
- Max Accumulated Spray Area of Water Tank(Fast Mode, ㎡)
- 25
- Method of Spray
- Ultrasonic Water Spray
- Self-adaptive Spray Volume (Y/N)
- Yes
- Number of Spray Nozzles
- 4
- Water Tank Empty Reminding (Y/N)
- Yes
- Frame Distance Detection (Y/N)
- Yes
- Water Tank Capacity(ml)
- 60
- Cleaning Mode
- Fast Cleaning Mode, Thorough Cleaning Mode, Spot Cleaning Mode
- Intelligent Route Planning
- Yes
- Power-off protection
- Yes
- Auto Back to Start Point
- Yes
- Voice Report
- YES
- Length of Power cord (m)
- 4.7
- Length of Safety Rope (m)
- 3.3
- Cleaning Solution (ml)
- 230
- Cleaning Cloth Size (m㎡)
- 215*215

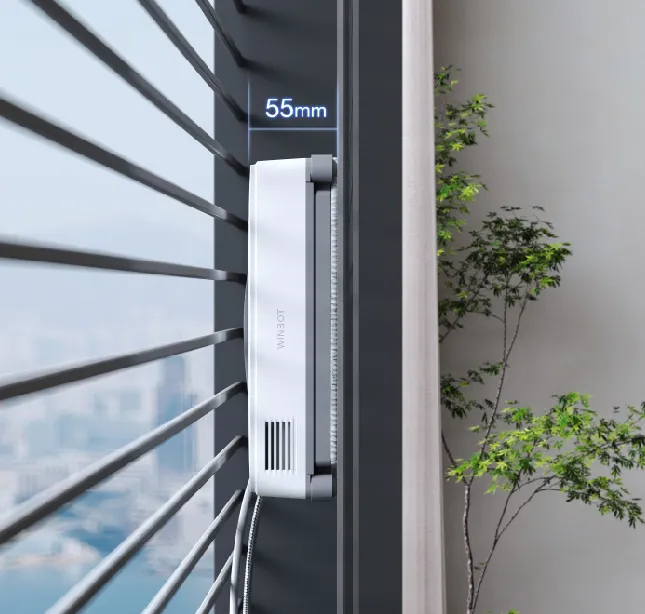

- Robot Size (mm)(l/w/h)
- 215*215*55
- Weight of Robot (kg)
- 1.3±0.1
- Charging Time (H)
- ≈3
- Working Speed (min/㎡)
- 3min±10s(Fast Mode)
- Battery Specifications (Type, mAh)
- Lithium 3000mah
- Power off protection time(Full charge)
- 30 min
- Gross Weight (kg)
- 2.8
- Size of Carton Box (mm)(l/h/w)
- 420*255*85
- Split Drive Tech (Y/N)
- No
- Intelligent Climbing System
- Yes
- Suction Power while moving(Pa)
- 3200
- Max. Suction Power(Pa)
- 7500
- Path Planning Tech
- WIN-SLAM 3.0
- Cleaning Mode
- Fast Cleaning Mode Thorough Cleaning Mode Spot Cleaning Mode
- Return to Initial Spot(Y/N)
- Yes
- Min. Detectable Height of Obstacle(mm)
- 4
- Min. Detectable Height of Frame(mm)
- 3
- Frame Detection (Y/N)
- Yes
- Breakpoint Continuation (Y/N)
- Yes
- APP Control
- Yes
- Manual Control (on APP)
- Four directional control
- Min. Window Size (cm)
- 22*25
- Applicable Window Type
- all types of flat windows
- Applicable Frame Type
- with Frame & Frameless
- Min. Glass Thickness (mm)
- 3
- Dimension of WINBOT(mm, L*W*H)
- 215*215*55
- Battteries Capacity (Type, mAh)
- 3000
- Battery Nominal Voltage (V)
- 3.6
- Typle of Blower Fan
- Brushless Motor
- Power-off Protection Duration (min)
- 30
- Battteries Capacity (Type, mAh)
- 3000
- Weight of WINBOT (kg)
- 1.3±0.1
- Weight of Batteries (g)
- 55g±5g(in-built battery)
- Number of Batteries
- 1
- Rated Power (W)
- 90
- Safety Battery Charging Time (H)
- 3
- Rated Voltage (V)
- 24
- Cleaning Efficiency in Default Mode (1X1㎡)
- 3min±10s(Fast Mode)
- Battery Life (min)
- unlimited

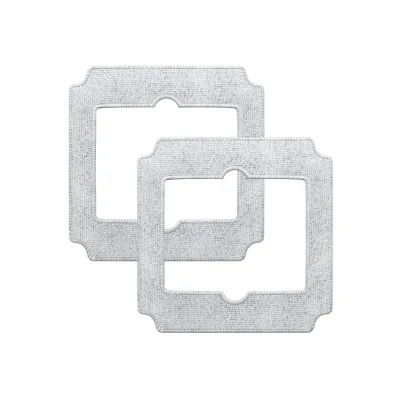

- Dimension of Wiping Pad (LengthxWidth mm)
- 215*215
- Total Lenght of Power Cable(m)
- 4.7
- Length of DC cord (m)
- 3.5
- Length of AC cord (m)
- 1.2
- Length of Backup Safety Rope (m)
- 3.3
- Capacity of Cleaning Solution (ml)
- 230
- User Manual
- 1
- Cleaning Solution
- 1
- Number of Wiping Pad
- 2
- Carabiner
- 1
- Safety Rope
- 1
- CONTENTS
- WINBOT*1, Adapter*1, Safety Rope*1, Carabiner*1,Wiping Pad*2, Cleaning Solution*1, User Manual*1
- WINBOT
- 1
- Power Adapter
- 1
- Net Weight of inner items (kg)
- 2.1
- Gross Weight of Packaging (Kg)
- 2.8
- Dimension of inner box (mm, L*W*H)
- 420*255*95
