DEEBOT T50 MAX PRO OMNI BlackWINBOT MINI Bundle
  • DEEBOT T50 MAX PRO OMNI BlackWINBOT MINI Bundle
  • 1DEEBOT T50 MAX PRO OMNI Black 1280x1280
  • 4DEEBOT T50 MAX PRO OMNI Black 1280x1280
  • 3DEEBOT T50 MAX PRO OMNI Black 1280x1280
  • 5DEEBOT T50 MAX PRO OMNI Black 1280x1280
  • EN WINBOT MINI Grey 03
  • EN WINBOT MINI Grey 04
  • EN WINBOT MINI Grey 05
  • EN WINBOT MINI Grey 07

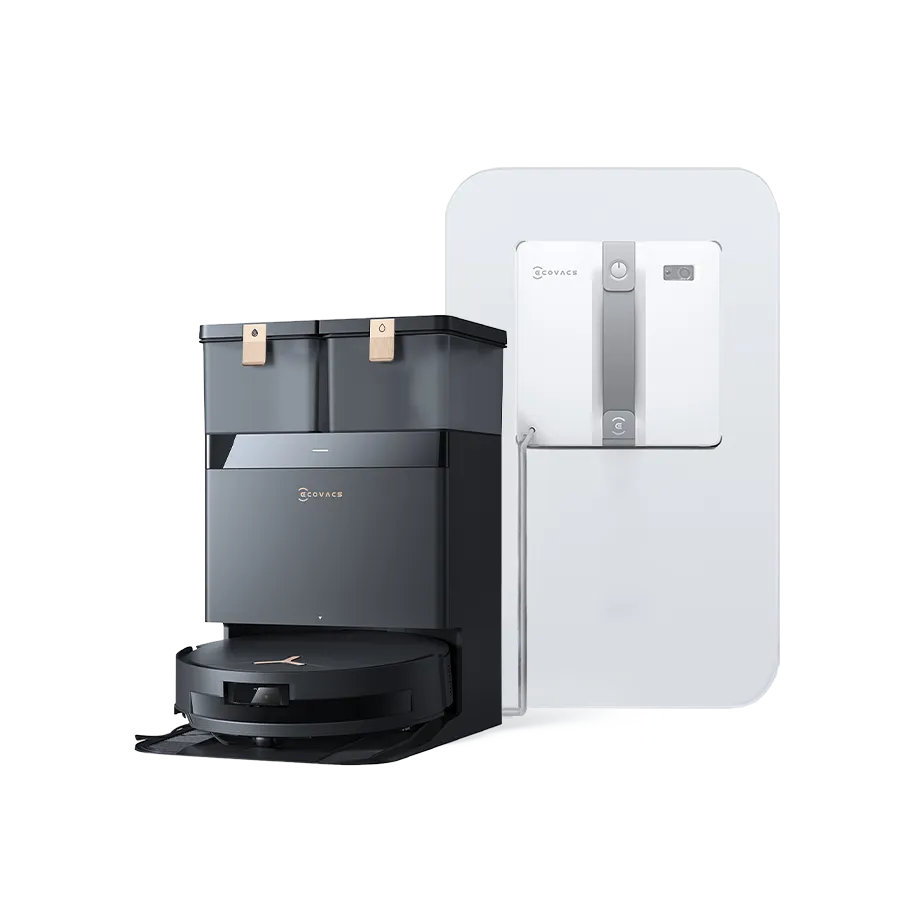

DEEBOT T50 MAX PRO OMNI+WINBOT MINI

Bundle: New Robotic Vacuum (T50 MAX PRO OMNI) with 18500 Pa suction and robot window cleaner (MINI)

Key Features

DEEBOT T50 MAX PRO OMNI:

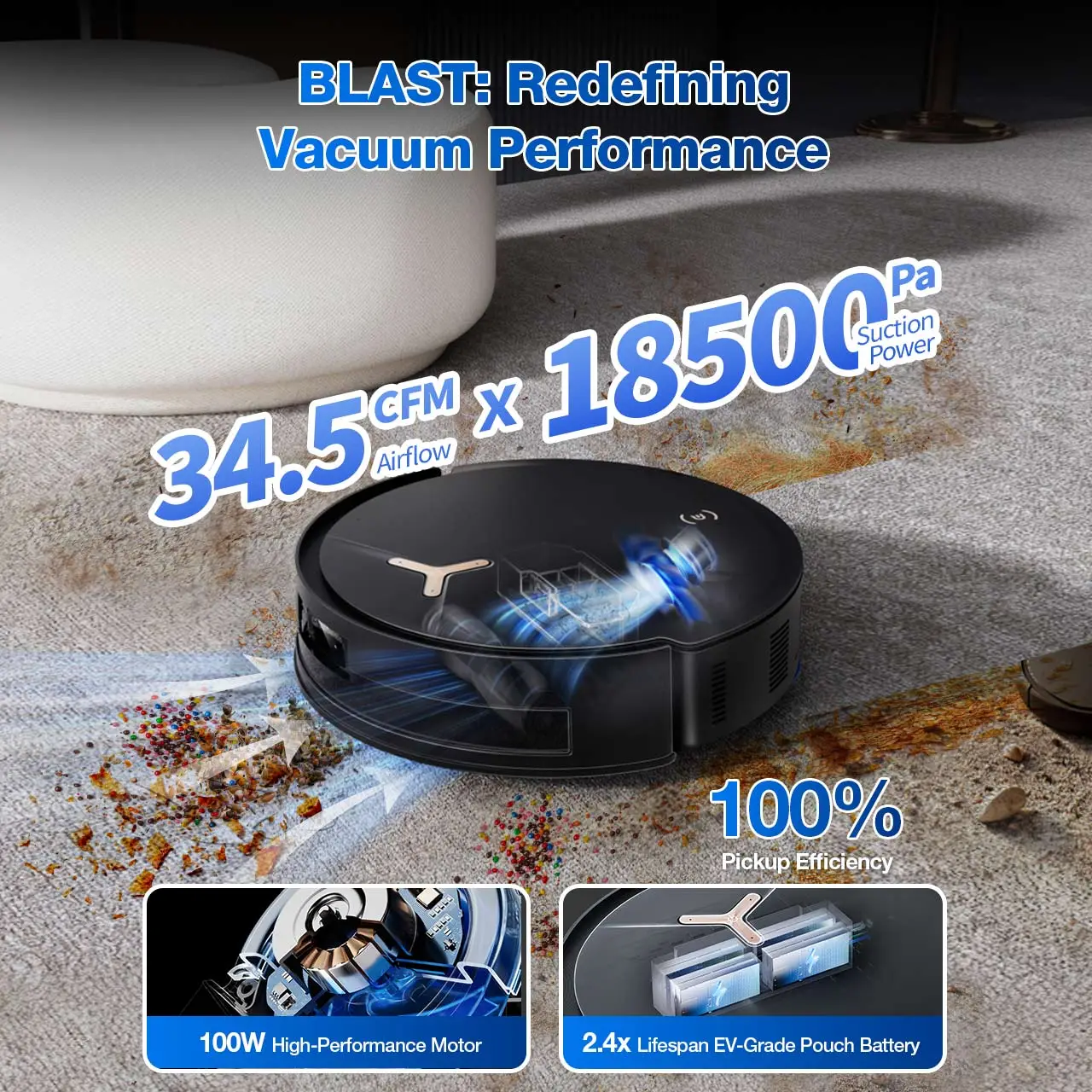

1. Boosted Large-Airflow Suction Technology
80% better carpet cleaning, 100% large particles pick-up.
How: DEEBOT lifts dust with its brush and sucks it into the dustbin via 16.3L airflow x 18500 Pa suction. Powerful pouch battery enhances vacuuming efficiency.

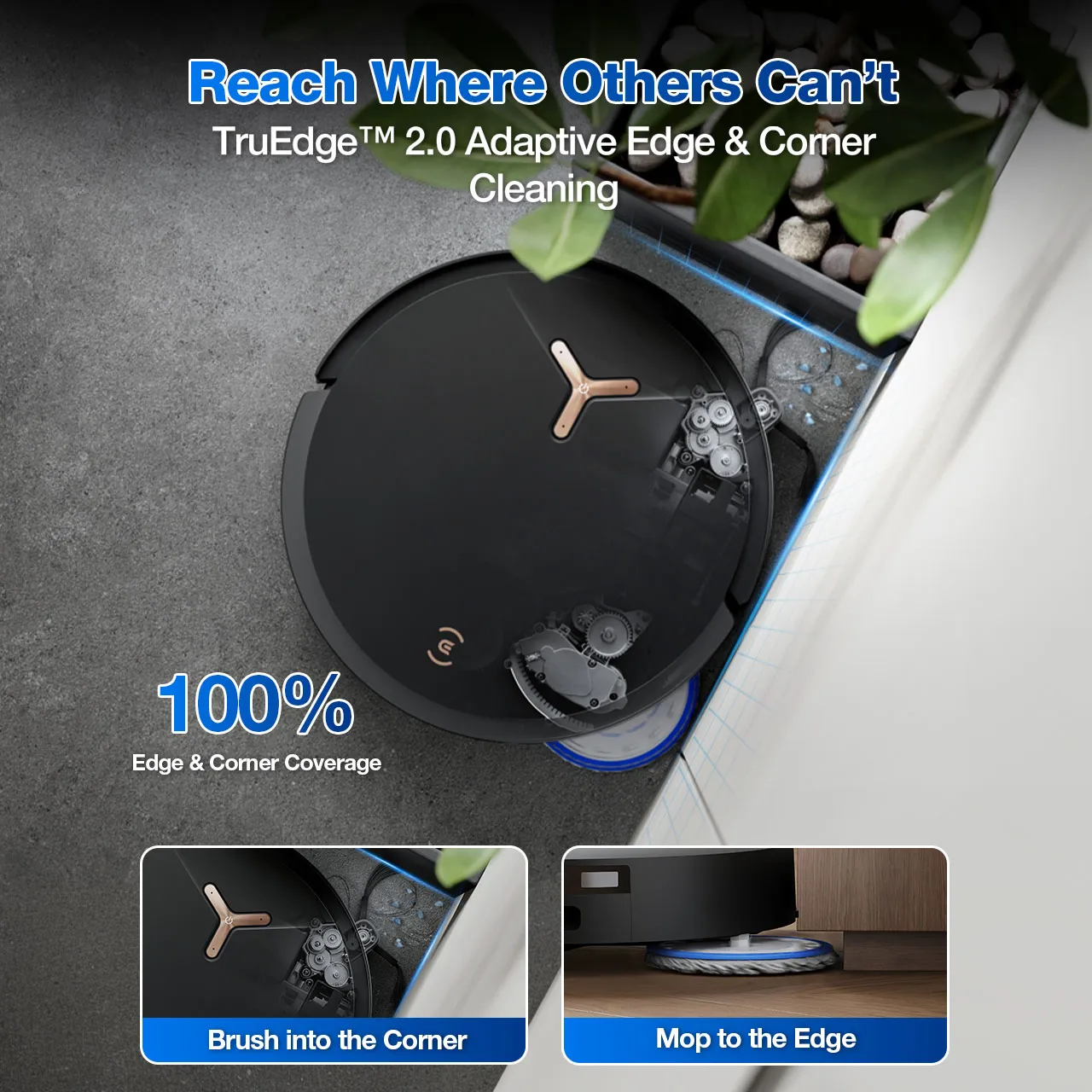

2. TruEdge 2.0 Adaptive Edge Mopping
The Mop continuously adjusts to hug edges and corners. Side brush extends automatically to clean tight spots, leaving no dirt behind.

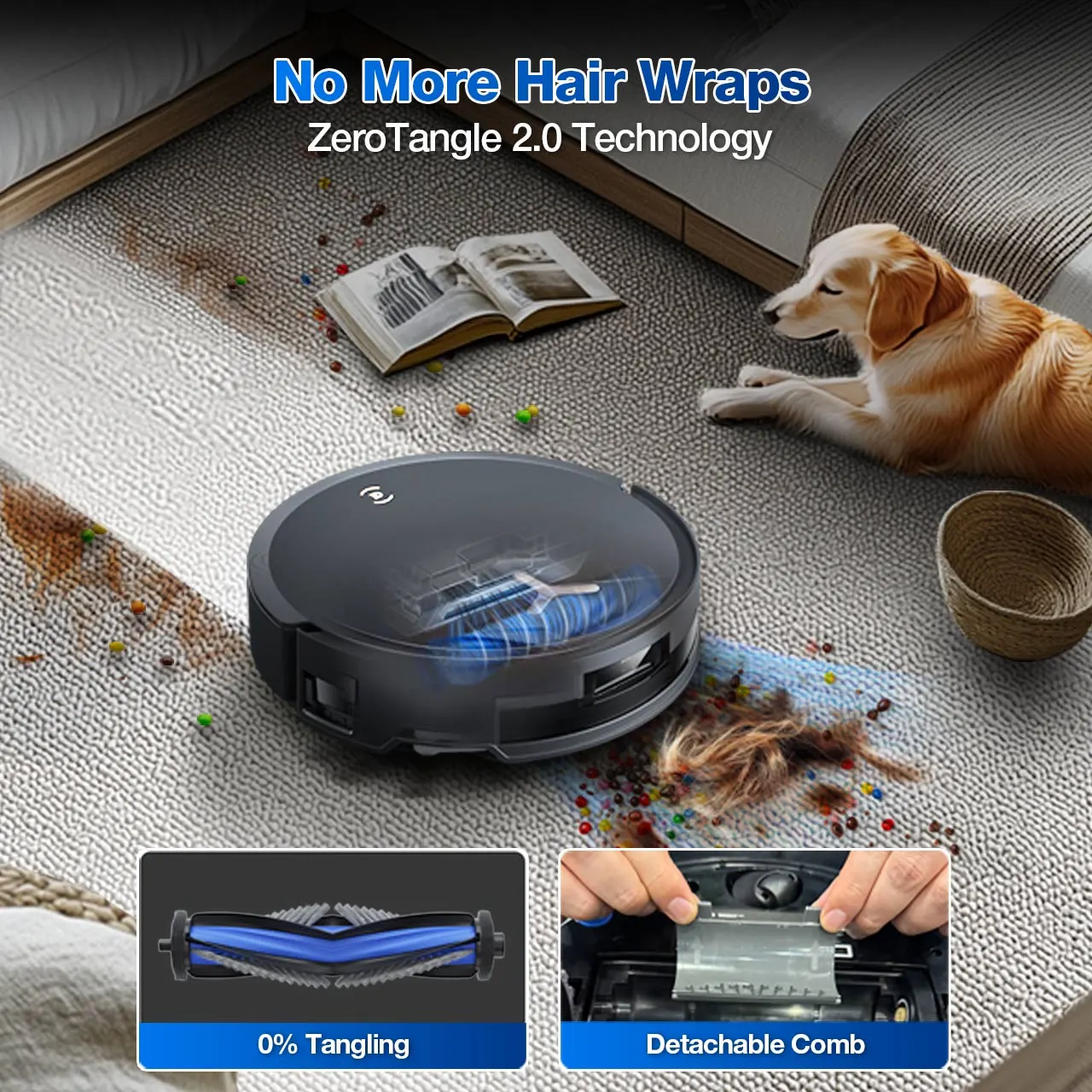

3. Zero Tangle 2.0 Technology
Triple V-shaped structures, actively gathers, lifts, and untangles hair, ensuring a tangling rate as low as 0%-even with long hair.
4. Remarkable Carpet Cleaning
"Carpet First" vacuums carpets dry before mopping to prevent wetting and contamination. Mop automatically lifts 18mm on newly-detected carpets during a cleaning task.
5. AIVI 3D 3.0 OMNI-Approach Technology
Adapts various home environments. Precise object detection and dynamic path planning for efficient cleaning.

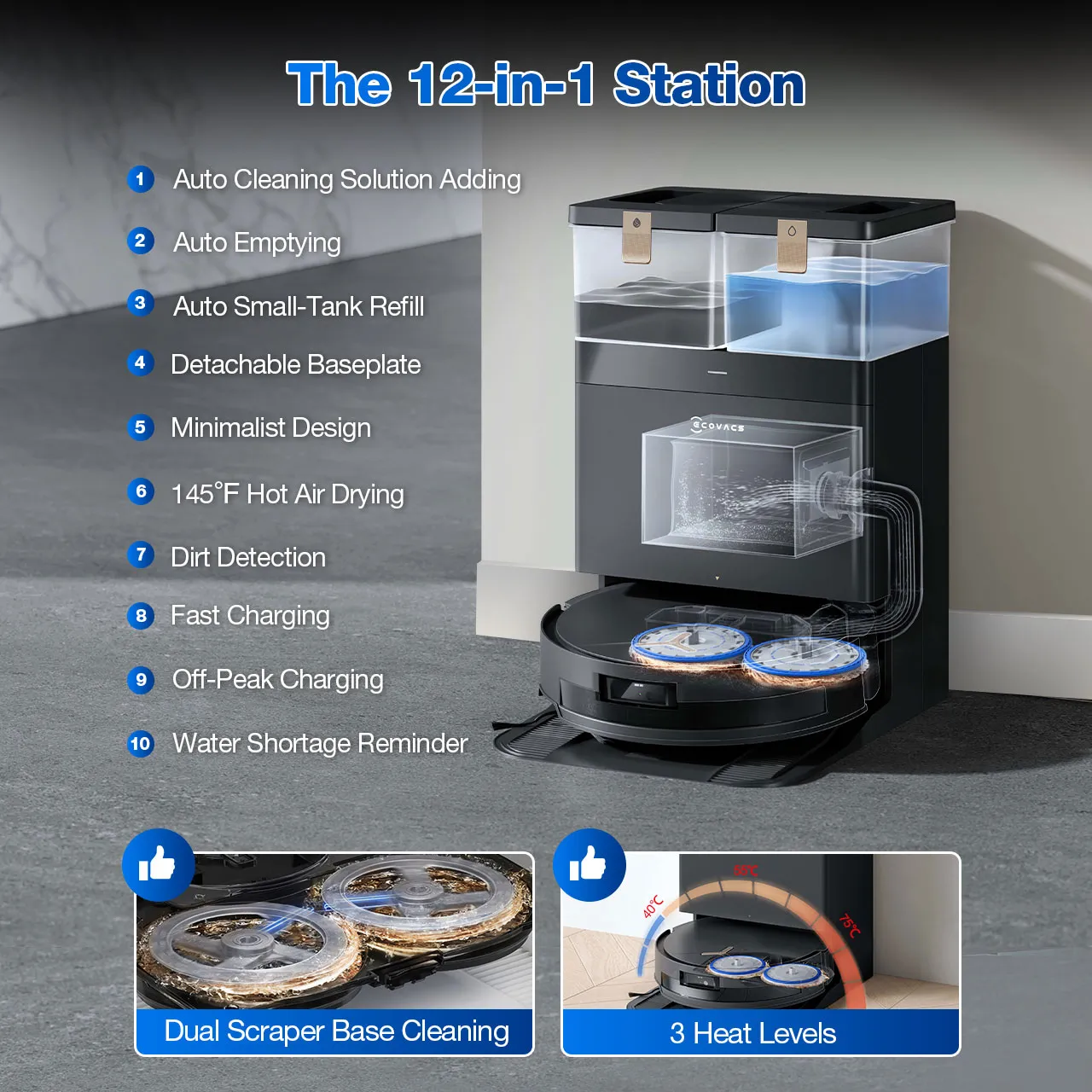

6. New Upgrades in OMNI Station
40-75℃ Temperature-Controlled Mop Washing, 65℃ Hot Air Drying, Auto Empty, Auto Cleaning Solution Adding, Fast Charging, Off-Peak Charging
7. Intuitive Interaction with YIKO-GPT
Understands requests with remarkable accuracy, providing tailored responses and helpful guidance.

WINBOT MINI:
1. Impeccably compact design for hard-to-reach scenarios

1) Redesigned from the inside out to achieve minimal size and fit into tight spaces
2) Adapts flexibly to various narrow window cleaning scenarios
3) Space-saving and easy to store

2. Compact yet powerful cleaning performance
1) Ultrasonic atomization spray
2) Achieve ultimate edge cleaning with up to 99.5% coverage
3) Classic cleaning cloth design

3. 9-stage protection for peace of mind
1) 6-hardware-based fall protection measures
2) 2-stage intelligent fall protection
3) Accidental damage insurance

4. Smart cleaning for effortless living

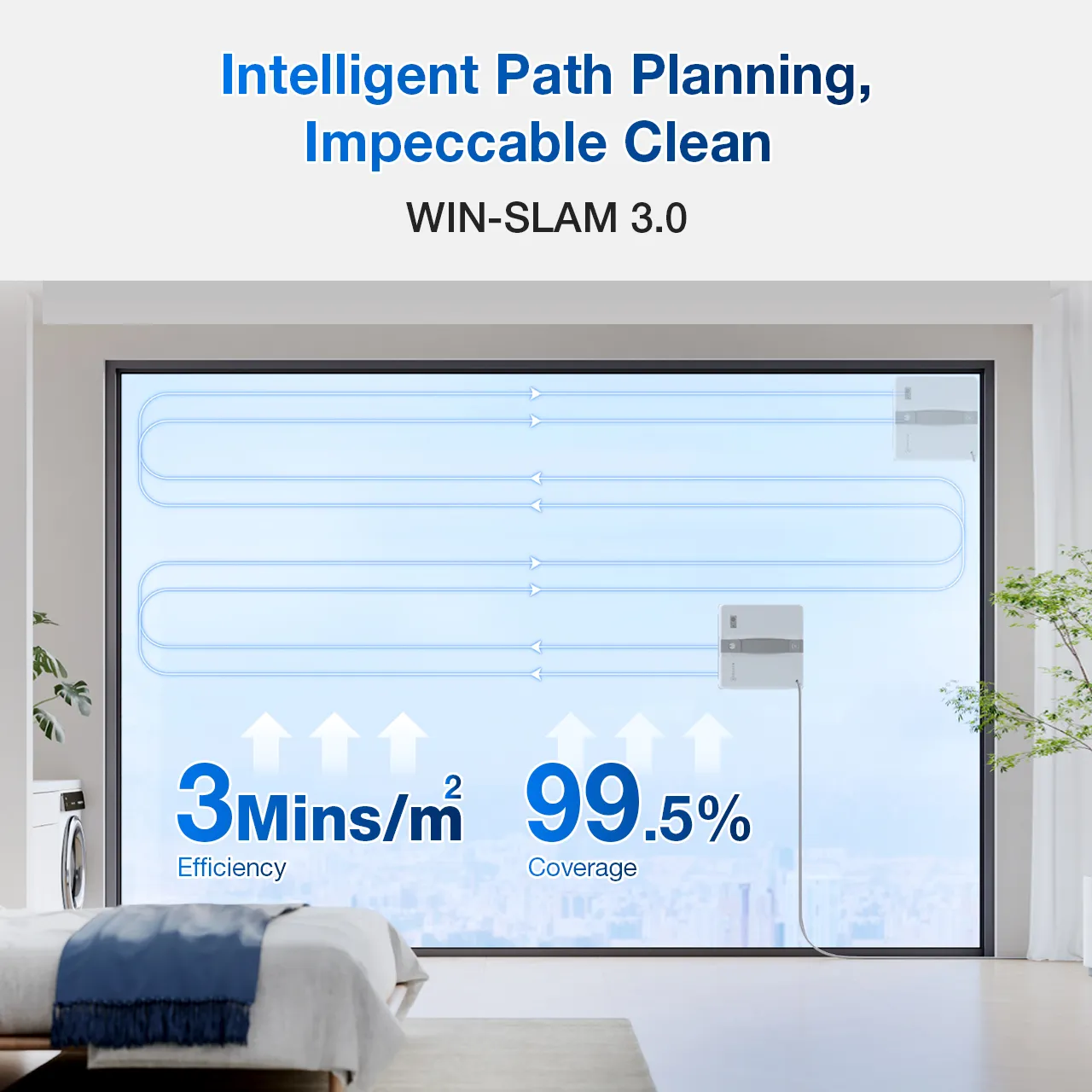

1) WIN-SLAM 3.0 algorithm
2) Customized cleaning mode choices
3) Accurate control with intutive ECOVACS HOME App

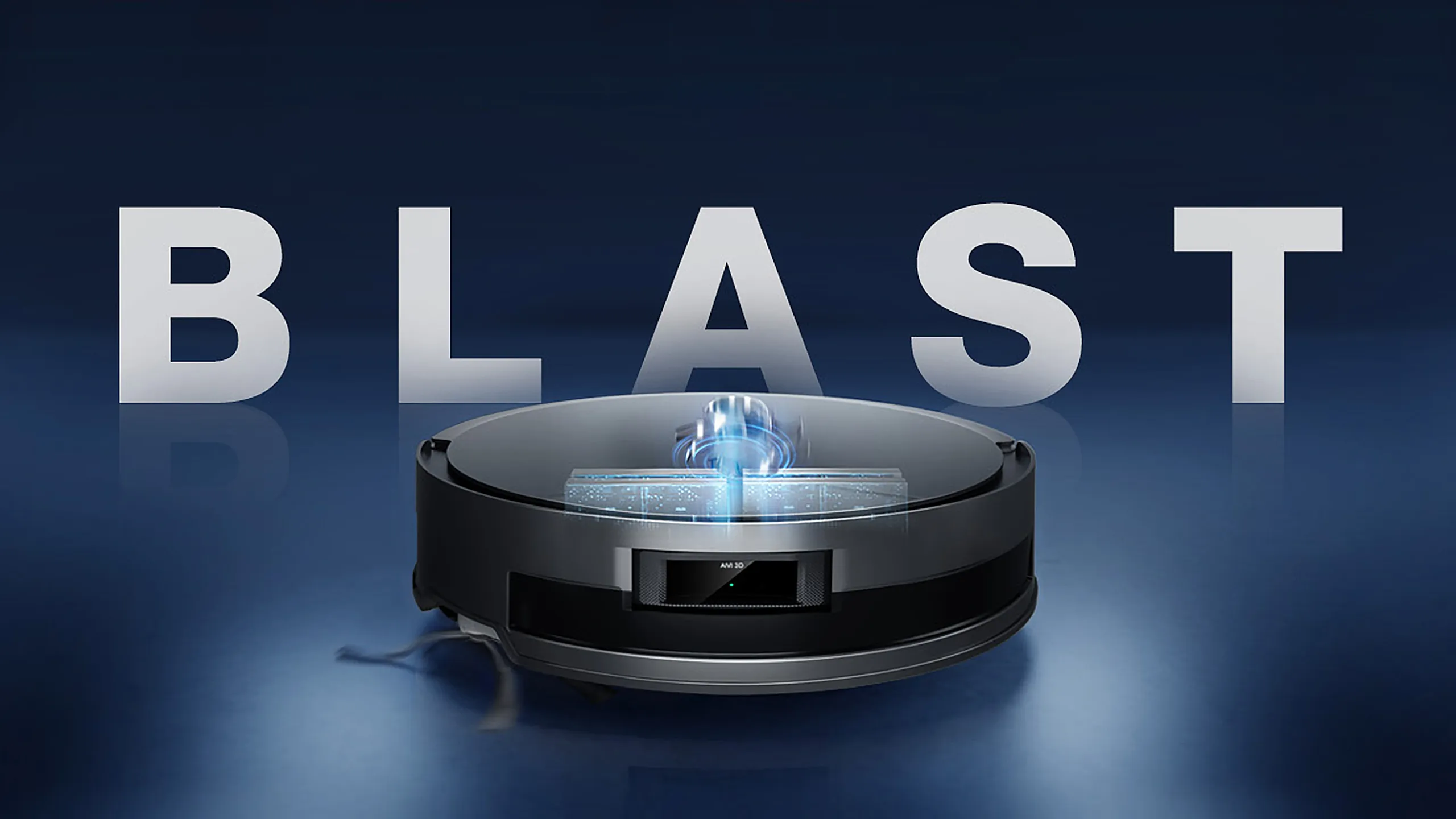

BLAST

BLAST

Boosted Large-Airflow Suction Technology
BLAST-ing Truly Effective Vacuuming Myths

BLAST-ing Truly Effective Vacuuming Myths

Cleaning efficacy lies not just in suction power. Introducing the revolutionary BLAST (Boosted Large-Airflow Suction Technology) Solution, DEEBOT T50 MAX redefines the truly effective vacuuming, balances maximized airflow and sufficient suction power.

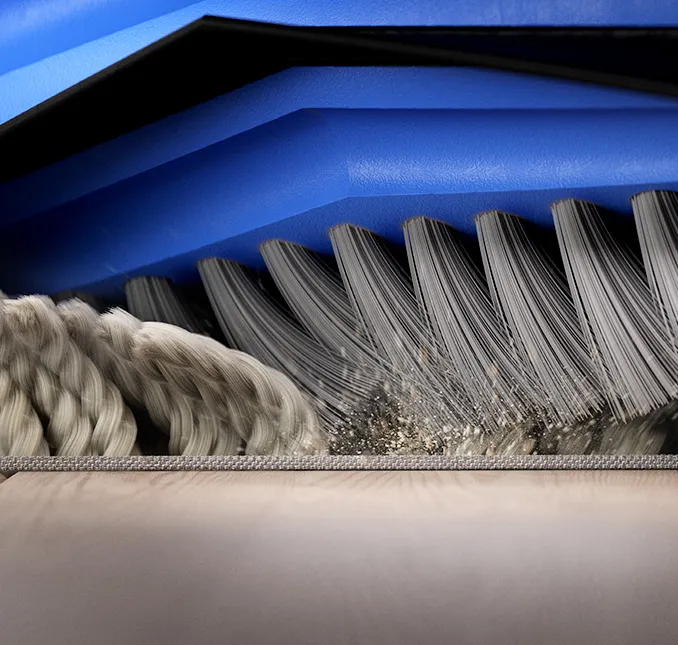

78% Increase in Carpet Cleaning Efficacy

78% Increase in Carpet Cleaning Efficacy

With advanced airflow and suction power, deep-cleaning carpets becomes effortless.

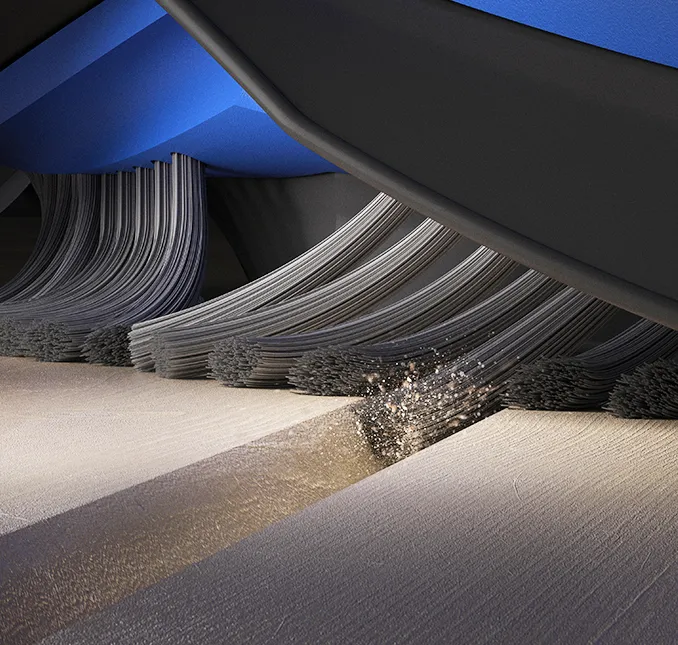

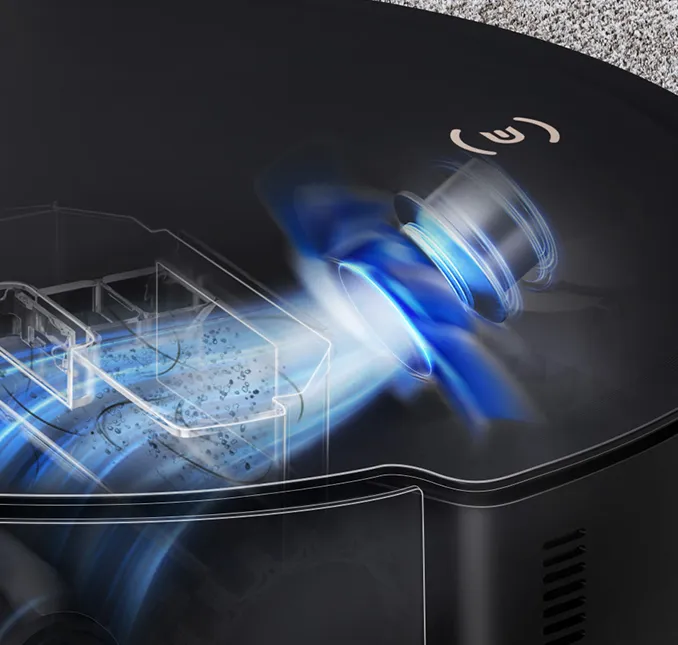

Deep Dust Extraction

Deep Dust Extraction

Go beyond the surface with technology that extracts deep-set dust from floor crevices, leaving no trace behind.

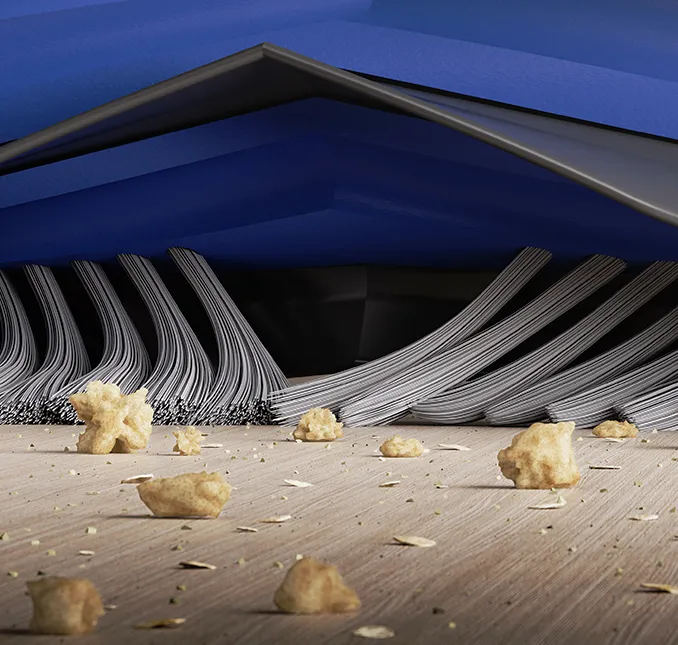

100% Large Particles Pickup

100% Large Particles Pickup

Tackle everything from pet hair to crumbs and debris with ease.

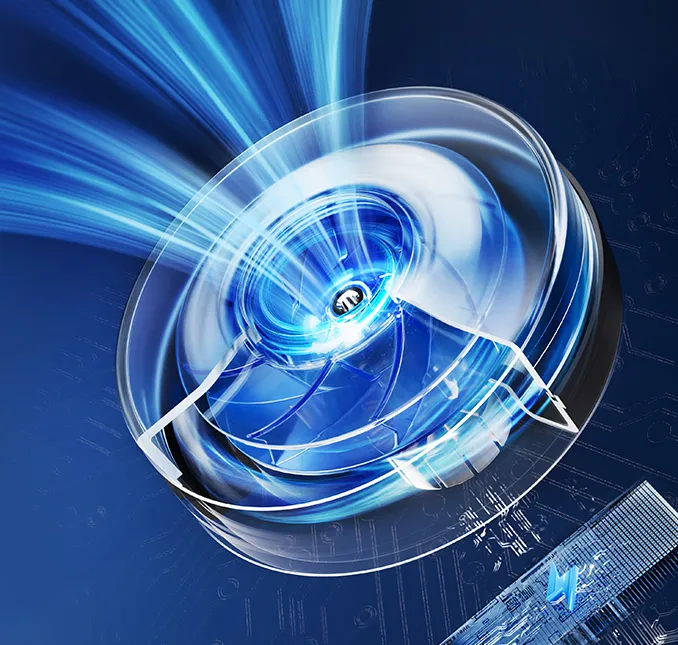

Improved Aerodynamic Design

Improved Aerodynamic Design

The improved aerodynamic design integrates 45% Larger fan blades, 32mm large fan inlet, 41° optimal fan blade, as well as large curvature Archimedean spiral air duct.
Compact but Crystal Clear

Compact but Crystal Clear

WINBOTMINIlistingpage 02

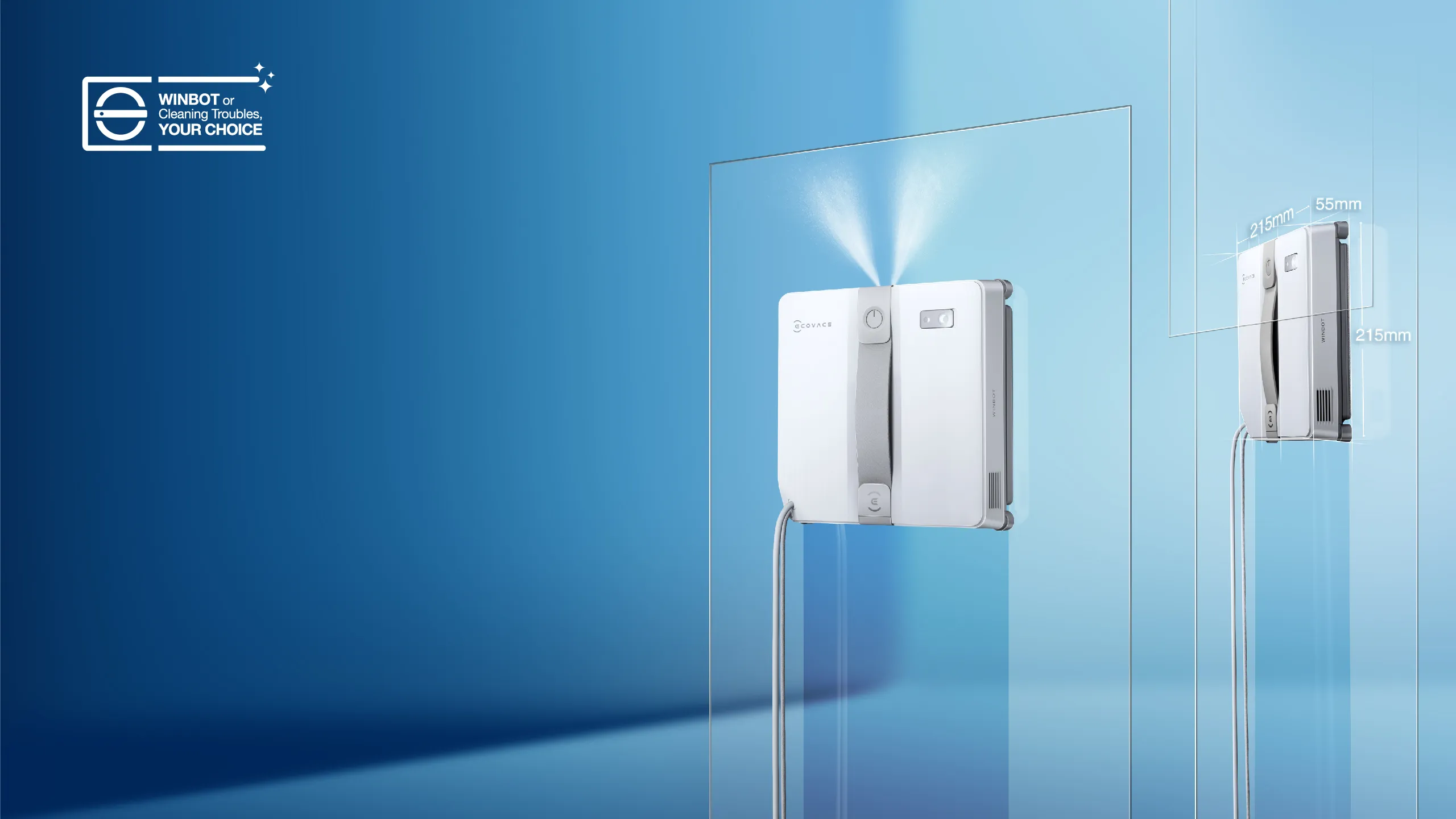

Impecably compact design for hard-to-reach scenarios

Impecably compact design for hard-to-reach scenarios

The ECOVACS engineering team has made highly integrated internal structural adjustments to WINBOT MINI, slimming it down to the fullest. This compact and handy design makes it perfect for cleaning narrow windows and those hard-to-reach areas.

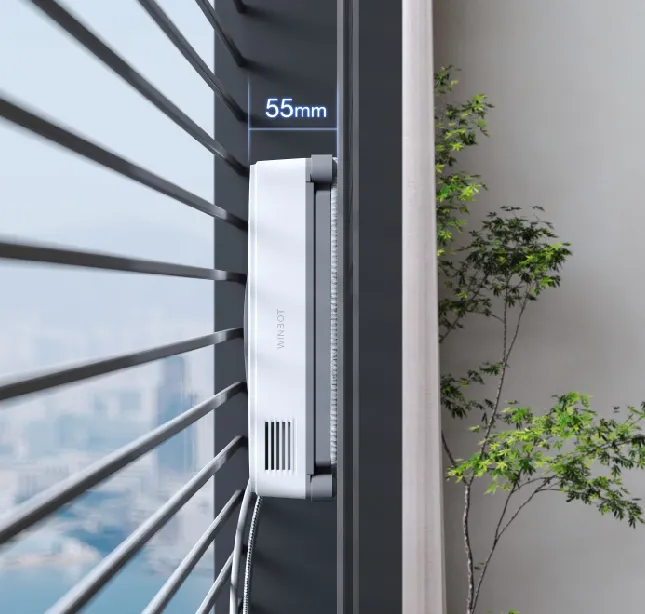

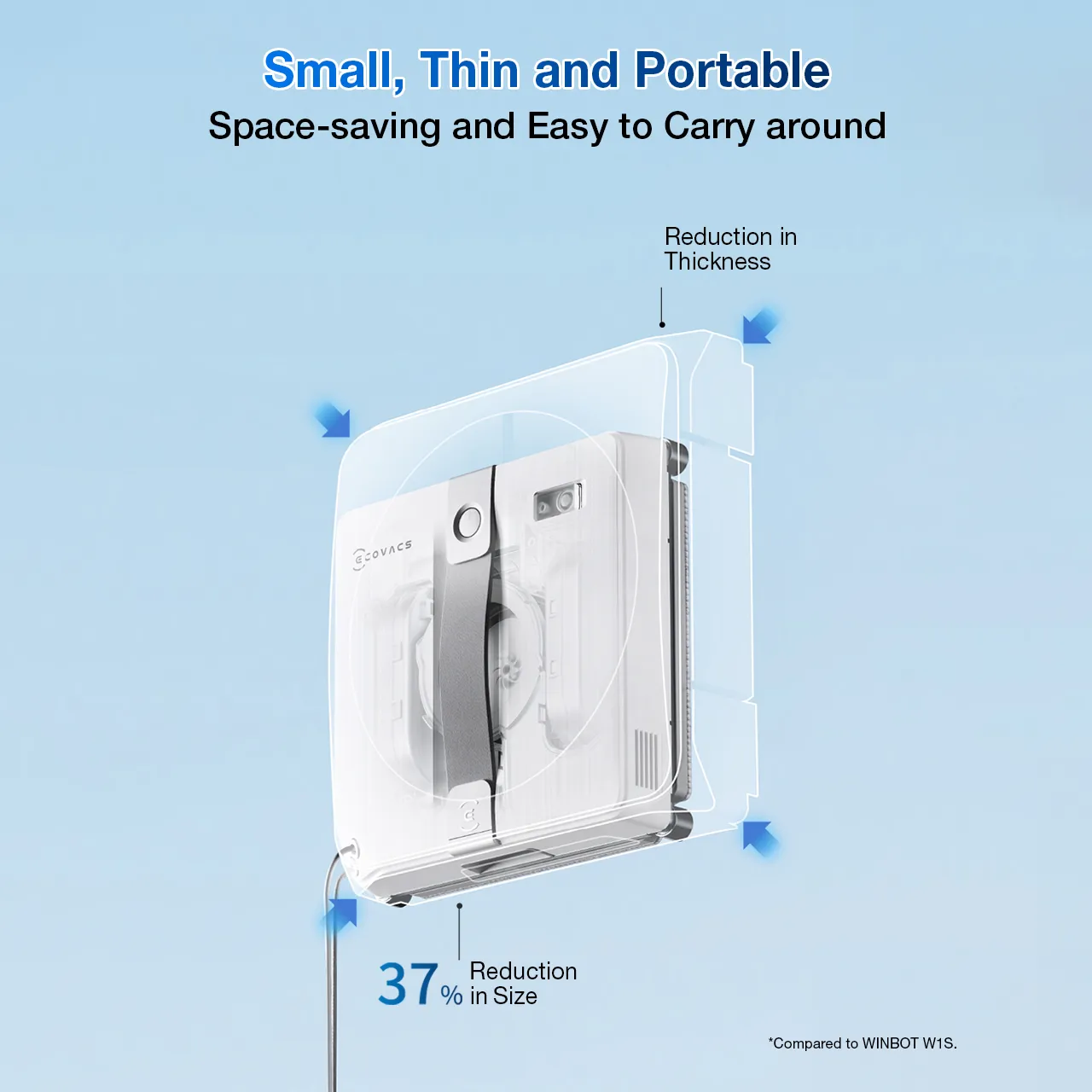

Redesigned from the inside out to achieve minimal size and fit into tight spaces

Redesigned from the inside out to achieve minimal size and fit into tight spaces

With WINBOT MINI, ECOVACS is introducing the most compact robotic window cleaner ever. The WINBOT MINI boasts a remarkable 30% reduction in thickness and a 37% smaller size compared to its predecessor. ECOVACS achieved this feat of engineering with a highly integrated internal structure that optimizes every inch of space, a bumper-less design shrinks the body size by 1.1in, optimized dual air ducts reduce thickness by 0.12in and an all-new compact-sized fan contributes to a smaller and lighter design. With a single side length of only 8.46in and a thickness of 2.17in, the WINBOT MINI is ideally sized to clean narrow windows and those hard-to-reach areas.

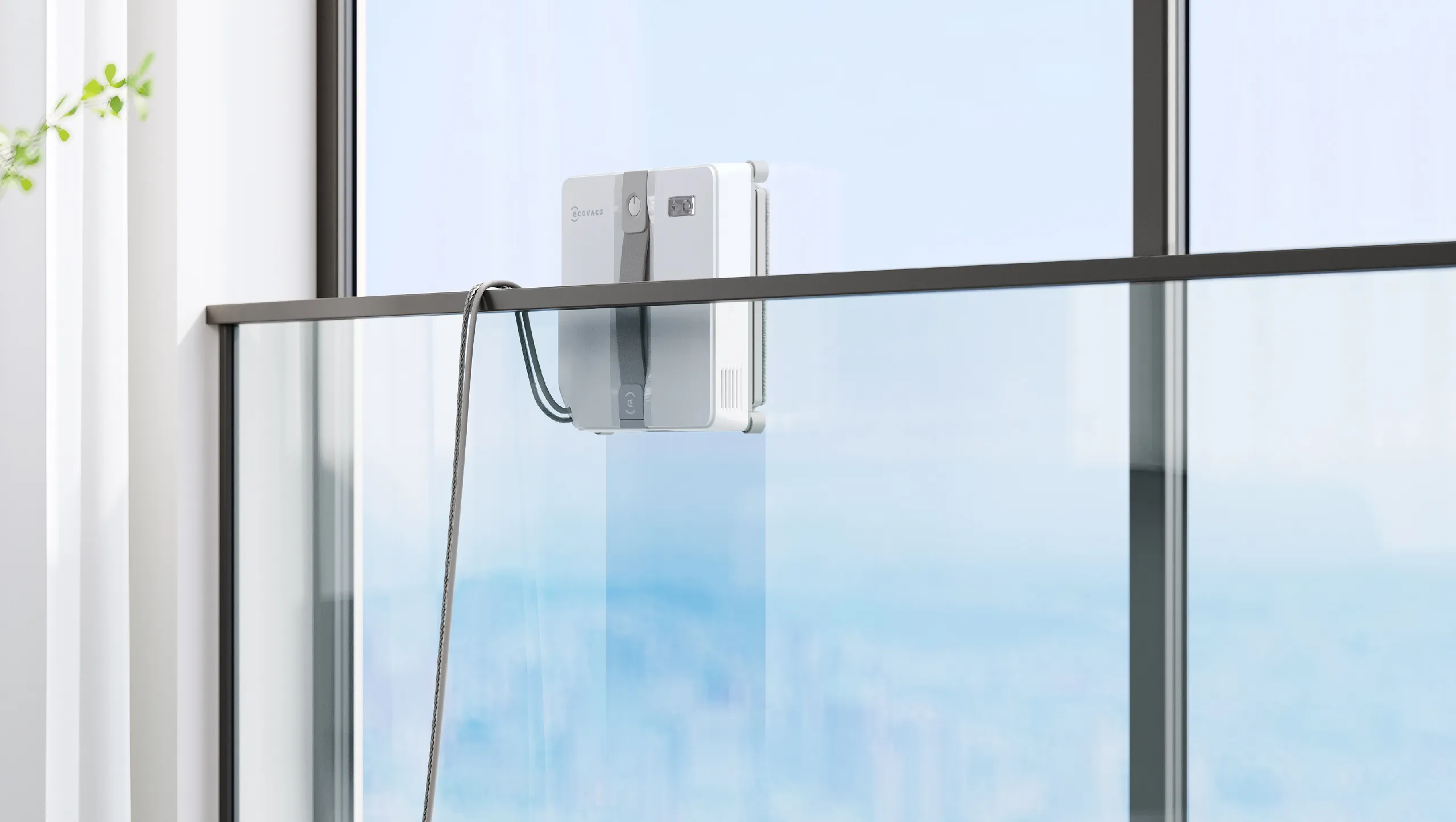

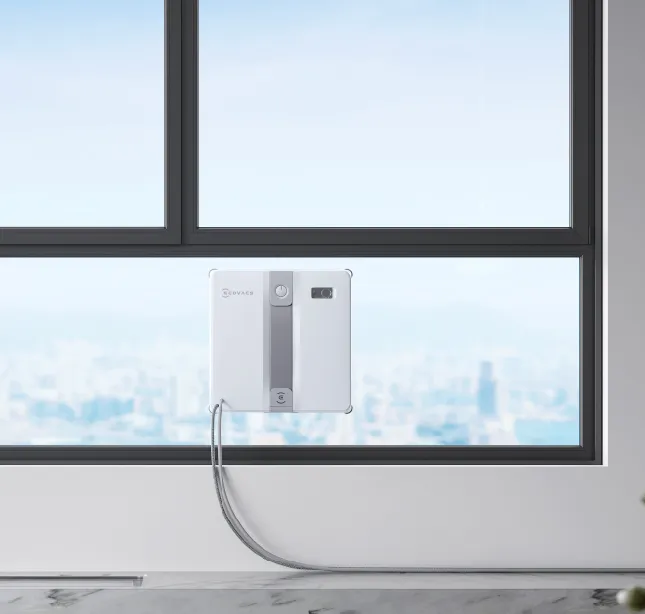

Adapts flexibly to various narrow window cleaning scenarios

Adapts flexibly to various narrow window cleaning scenarios

WINBOT MINI's uniquely small, thin and light design gives it unprecedented flexibility and adaptability, allowing it to reach areas other robotic window cleaners can't. The WINBOT MINI can now clean windows with guardrails and security bars, small windows with a single side length less than 30cm, and windows with handles (the distance between the handle and the glass is around 50 - 80mm). The minimized body size design of WINBOT MINI allows it to easily navigate the complex window structures found in modern homes with ease. Users will enjoy improved cleaning efficiency and reduced risk of accidents compared to traditional methods.
Compact yet powerful cleaning performance

Compact yet powerful cleaning performance

WINBOT MINI shows that power can come in small packages. Its compact design doesn't compromise cleaning performance – users get sparkling clean windows with the same efficiency and effectiveness as larger models.

DEEBOT T50 MAX PRO OMNI Robotic Vacuum Cleaner (18,500Pa, ZeroTangle, TruEdge)

Navigation Type
dToF
Obstacle Avoidance
RGBD
YIKO
YIKO-GPT
Integrated voice control（Y/N）
Yes
mopping type
OZMO Turbo
Cleaning mode
vacuum, mop, vacuum and mop, vacuum first and then mop
Edge Mopping
TruEdge 2.0
Vacuum port type (straight suction port/main brush)
main brush
Fan pressurization (Y/N)
Yes
Dust box capacity(L)
0.3
Dust Box filter（Filter Net /Cotton/Filter）
Filter Net , Antibacterial Filter
Dust box detection（Y/N）
No
Washable filter（Y/N）
Yes
filter level
F9
Main brush type
floating
Extendable Side Brush
Yes
Extendable Mop
Yes
Main brush material
brush
Tangle detection （Y/N）
Yes
Anti-tangle technology
ZeroTangle 2.0
ZeroTangle（Y/N）
Yes
TruEdge（Y/N）
Yes
Ultrasonic carpet detection（Y/N)
Yes
AI stain detection（Y/N)
Yes
Carpet pressurization（Y/N)
Yes
Mop pressurization (Y/N)
No
water tank capacity（ml）
80
auto refill (station to deebot)
Yes
Barrier crossing ability (mm)（with mop）
22
automatic mop lifting (mm)
18
Compatible with Automatic upper and lower water system
No
auto dust collection
Yes
dust bag detection（Y/N）
Yes
Dust colletion duration
5+2+5
dust bag capacity（L）
3
automatic mop cleaning
Yes
warm water mop cleaning
40-75℃
dirty water tank capacity（L）
4L
clean water tank capacity（L）
4L
water tank detection (Y/N)
Yes
Sewage detection（Y/N）
Yes
Mopping area based on water tank capacity（m²）
≥400
low water level alert（Y/N）
Yes
hot air dry
Yes
Temperature-controlled mop washing
Yes
hot air drying duration
2h( default)/3h/4h
Detachable cleaning tank（Y/N）
Yes
Automatic addition of cleaning solution-Tank
Yes
Base station self-cleaning - scraping arm method
Yes
vacuum level（MAX）（Pa）
18,500Pa
noise-standard mode -sweep （dBA)
64.9
noise-standard mode-sweep&mop （dBA)
64.6
Battery type
Li-ion
Battery capacity（mAh）
6400
Number of cells
1
charging time(H)
≈3.5h
Charging method (fast charging/normal charging)
fast charging
working time on hard floor-silent mode（sweep）(min)
206min
working time on hard floor-standard mode（sweep）(min)
194min
working time on hard floor-silent mode（sweep&mop）(min)
164min
working time on hard floor-standard mode（sweep&mop）(min)
159min
DEEBOT working voltage（V）
20V
Deebot dimension (wide/depth/height mm)
353*351*98
station dimension(wide/depth/height mm)(without base)
350*294*533
station dimension(wide/depth/height mm)(with base)
350*477*533
Outer Carton Dimension(wide/depth/height mm)
590*380*405
INBOX
DEEBOT*1 OMNI station*1 Power cord*1 User Manual*1 Quick guide*1 Mopping pad plate*2 Washable Mopping Pad*2 Side Brush*1 Main brush&Main Brush Cover*1 Antibacterial Filter *1 Antibacterial Dust Bag*1 clean water tank*1 dirty water tank*1
Minimum Window Size
8.66*9.84 (in)
Applicable Window
all types of flat windows
Auto Spray (Y/N)
Yes
Manual Spray (on APP)
Yes
Spray Width（cm）
8.5
Spray Length (front)（cm）
10
Spray Uniformity (variance）
/
Ratio of Spray Coverage
/
Max Accumulated Spray Area of Water Tank（Fast Mode, ㎡）
25
Method of Spray
Ultrasonic Water Spray
Self-adaptive Spray Volume (Y/N)
Yes
Number of Spray Nozzles
4
Water Tank Empty Reminding (Y/N)
Yes
Frame Distance Detection (Y/N)
Yes
Water Tank Capacity（ml）
60
Cleaning Mode
Fast Cleaning Mode, Thorough Cleaning Mode, Spot Cleaning Mode
Intelligent Route Planning
Yes
Power-off protection
Yes
Auto Back to Start Point
Yes
Voice Report
Yes
Length of Power cord (m)
4.7
Length of Safety Rope (m)
3.3
Cleaning Solution (ml)
230
Cleaning Cloth Size (m㎡)
215mm*215mm
Robot Size (mm)(l/w/h)
215*215*55
Weight of Robot (kg)
1.3±0.1
Charging Time (H)
≈3
Working Speed (min/㎡)
3min±10s（Fast Mode）
Battery Specifications (Type, mAh)
Lithium 3000mah
Power off protection time（Full charge）
30min
Gross Weight of Carton Box (Kg)
2.8
Size of Carton Box (mm)(l/h/w)
420*255*85
Split Drive Tech (Y/N)
No
Intelligent Climbing System
Yes
Suction Power while moving（Pa）
3200
Max. Suction Power（Pa）
7500
Path Planning Tech
WIN-SLAM 3.0
Cleaning Mode
Fast Cleaning Mode Thorough Cleaning Mode Spot Cleaning Mode
Return to Initial Spot(Y/N)
Yes
Min. Detectable Height of Obstacle（mm）
4
Min. Detectable Height of Frame（mm）
3
Frame Detection (Y/N)
Yes
Breakpoint Continuation (Y/N)
Yes
APP Control
Yes
Manual Control (on APP)
Four directional control
Min. Window Size (cm)
22*25
Applicable Window Type
all types of flat windows
Applicable Frame Type
with Frame & Frameless
Min. Glass Thickness (mm)
3
Dimension of WINBOT(mm, L*W*H)
215*215*55
Battteries Capacity (Type, mAh)
3000
Battery Nominal Voltage (V)
3.6
Typle of Blower Fan
Brushless Motor
Power-off Protection Duration (min)
30
Battteries Capacity (Type, mAh)
3000
Weight of WINBOT (kg)
1.3±0.1
Weight of Batteries (g)
55g±5g(in-built battery)
Number of Batteries
1
Rated Power (W)
90
Safety Battery Charging Time (H)
3
Rated Voltage (V)
24
Cleaning Efficiency in Default Mode (1X1㎡)
3min±10s（Fast Mode）
Battery Life (min)
unlimited
Dimension of Wiping Pad (LengthxWidth mm)
215*215
Total Lenght of Power Cable（m）
4.7
Length of DC cord (m)
3.5
Length of AC cord (m)
1.2
Length of Backup Safety Rope (m)
3.3
Capacity of Cleaning Solution (ml)
230
User Manual
1
Cleaning Solution
1
Number of Wiping Pad
2
Carabiner
1
Safety Rope
1
CONTENTS
WINBOT*1, Adapter*1, Safety Rope*1, Carabiner*1,Wiping Pad*2, Cleaning Solution*1, User Manual*1
WINBOT
1
Power Adapter
1
Net Weight of inner items (kg)
2.1
Gross Weight of Packaging (Kg)
2.8
Dimension of inner box (mm, L*W*H)
420*255*95

Instruction Manuals

DEEBOT T50 MAX Family.pdf
