DEEBOT X9 PRO OMNI Robot Vacuum and Mop + Window Cleaning Robot WINBOT W2 PRO OMNI
Key Features
Key points:
DEEBOT X9 PRO OMNI:
BLAST (Boosted Large-Airflow Suction Technology)
• BLAST generates an unprecedented airflow rate of 16.3L/s, as well as a sufficient 16,600Pa suction power
• 137.6% increase in carpet dust removal rates

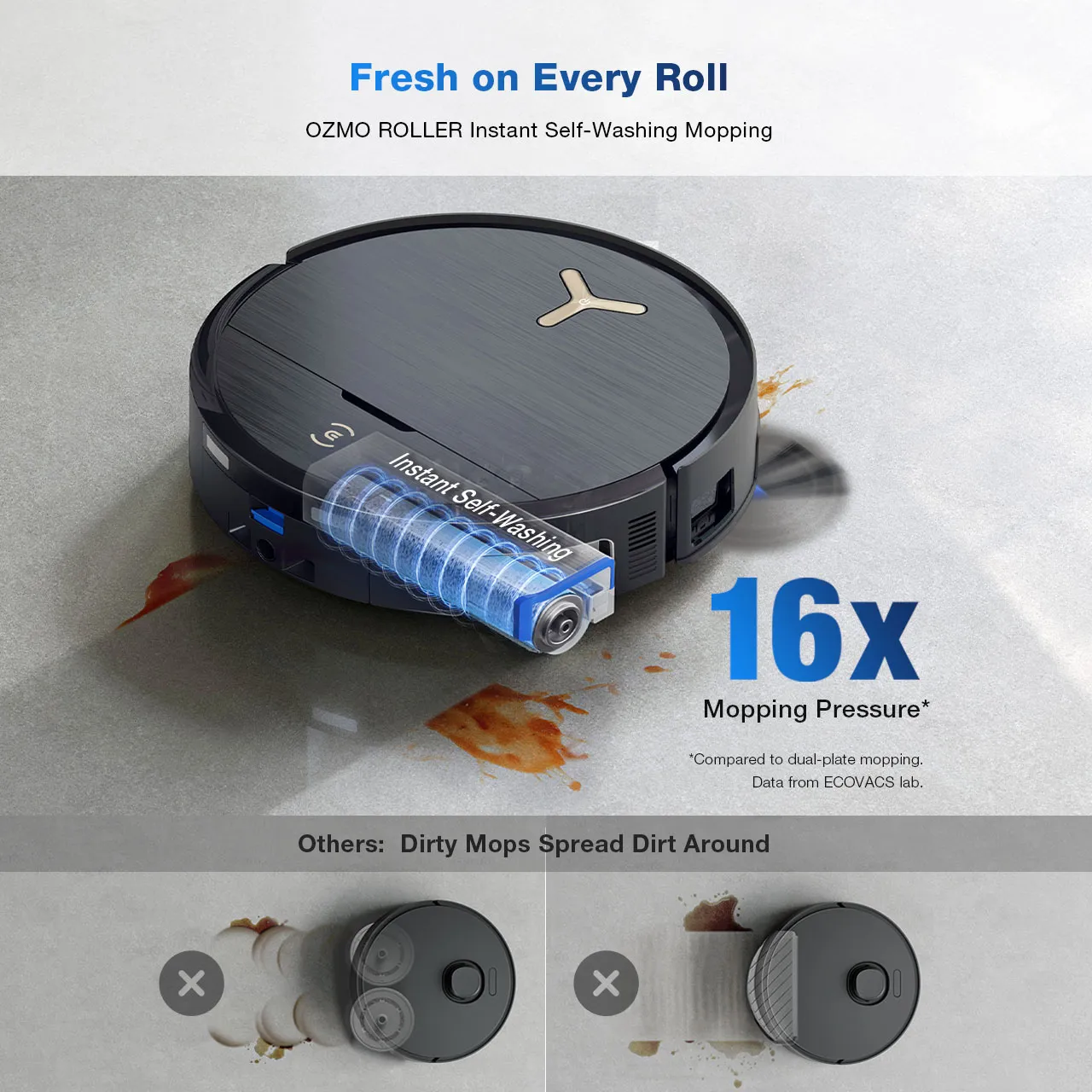

OZMO ROLLER Instant Self-Washing Mopping Technology
• higher mopping pressure (3,700Pa) +up to 220 rpm rolling speed
• thorough stain removal while preventing streaks and cross-contamination

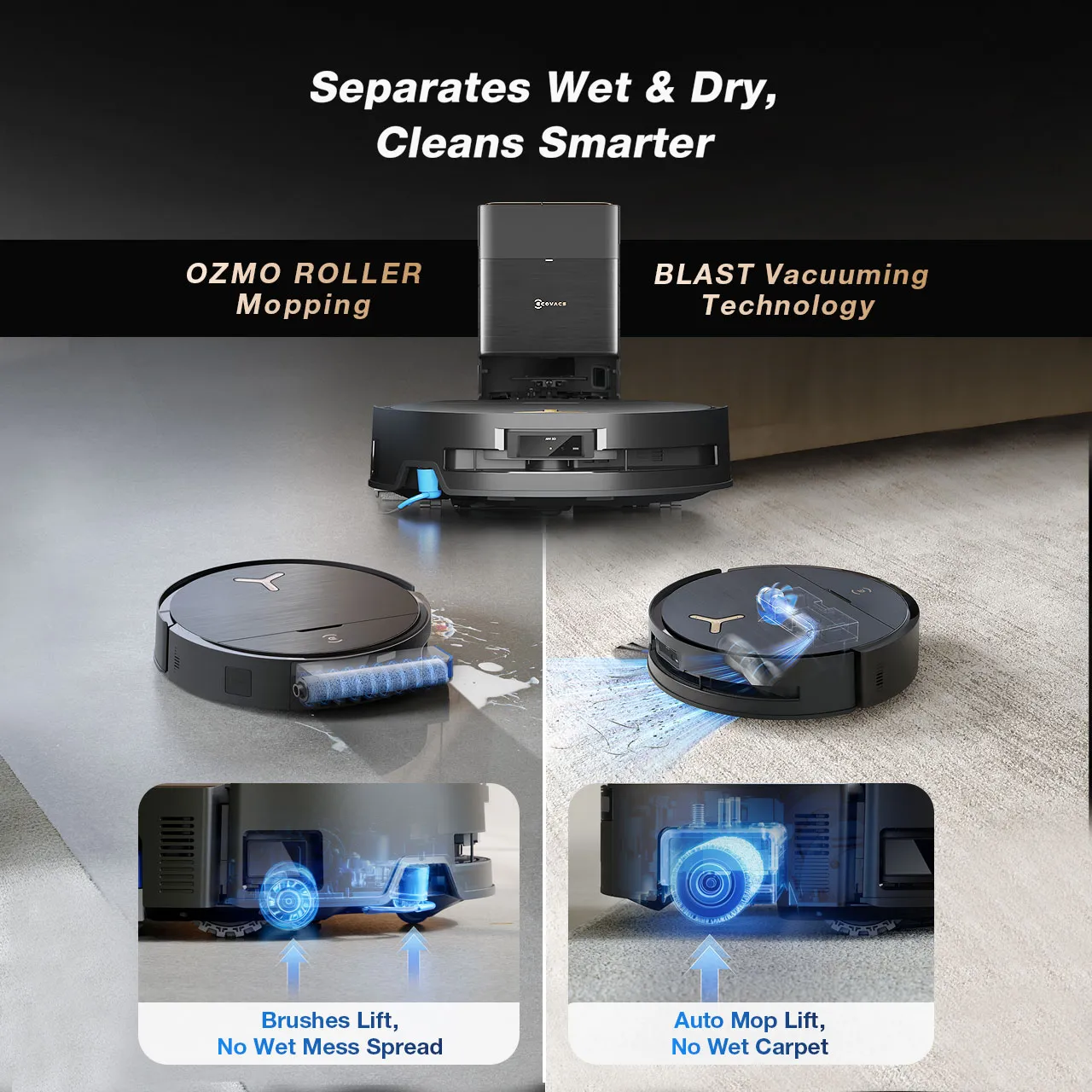

AI Stain Detection 2.0 & Triple Lift with Precision Dry-Wet Separation
• The AI Stain Detection 2.0 analyzes mess types intelligently
• Triple Lift System adapts to diverse cleaning challenges with Precision Dry-Wet Separation

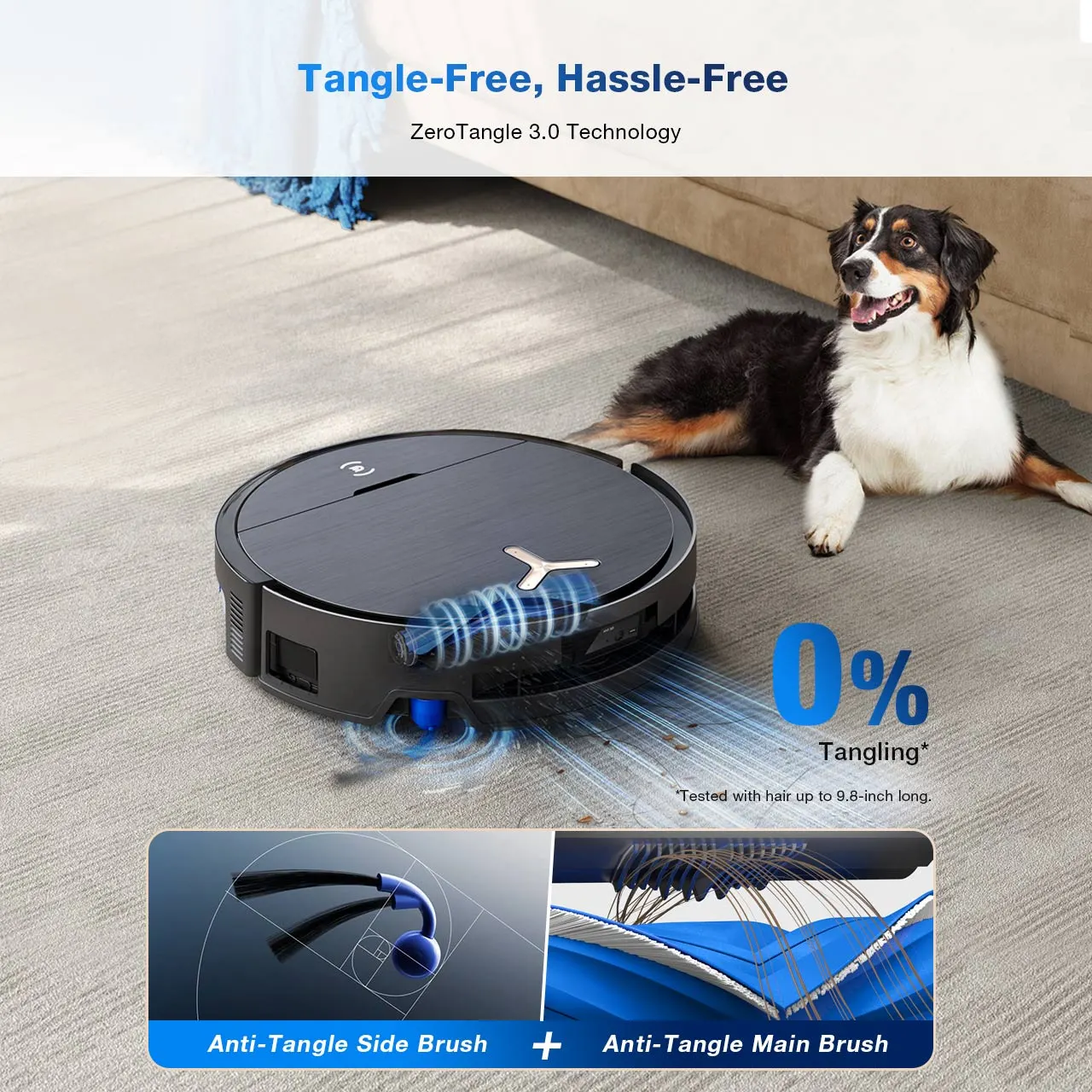

ZeroTangle 3.0 Anti-Tangle Technology
• it features the ARClean Anti-Tangle Side Brush and Cyclone-Directed Anti-Tangle Main Brush
• effectively eliminating hair tangles for uninterrupted performance.
TruEdge 2.0 with 3D Edge Sensor
• roller mop to extend dynamically during edge cleaning
• maximize the coverage at edges and corners

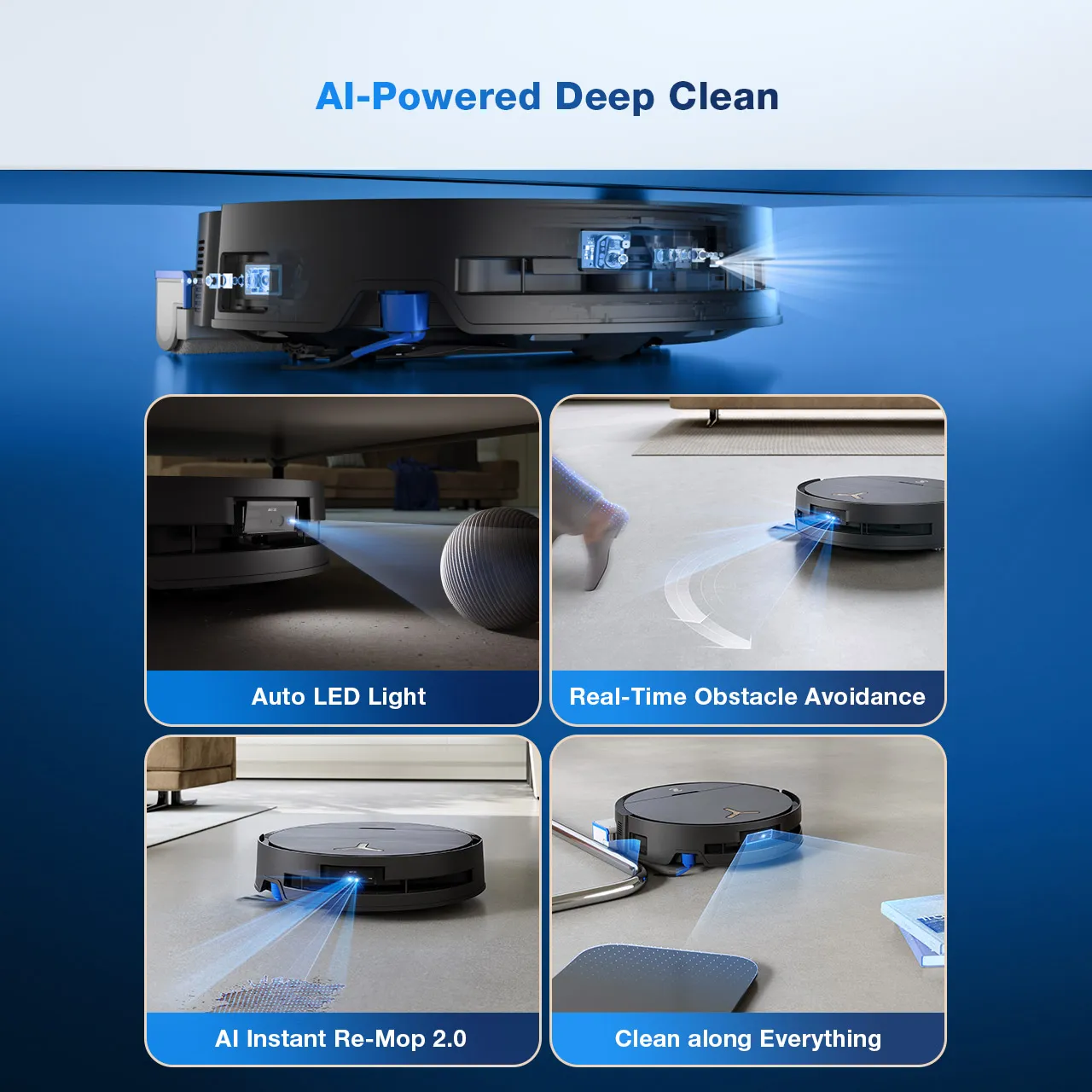

AIVI 3D 3.0
• Vision AI + 3D sensors detect obstacles instantly.
• Cleans edges tightly, avoids moving objects like pets instantly.
Industry first EV-Grade Pouch Battery
• 2.4 times battery life and 6400 mAh robust power
Upgraded OMNI Station with Innovation
• Temperature-Controlled Mop Washing 2.0
• 63°C Hot Air Drying
WINBOT W2 PRO OMNI:
1. Unique, cutting-edge window cleaning station, a multi-functional dock to free your hands
1) Integrated large capacity battery
2) Two-in-one compound cable with both safety and power cords
3) Automatic cable management
4) Anti-drop protection mechanism
5) Multi-function station panel
6) Portable storage
2. Revolutionary cleaning powered by innovation for clearer than ever windows
1) Industry-first edge cleaning mode which brings ultimate cleanliness to window edges

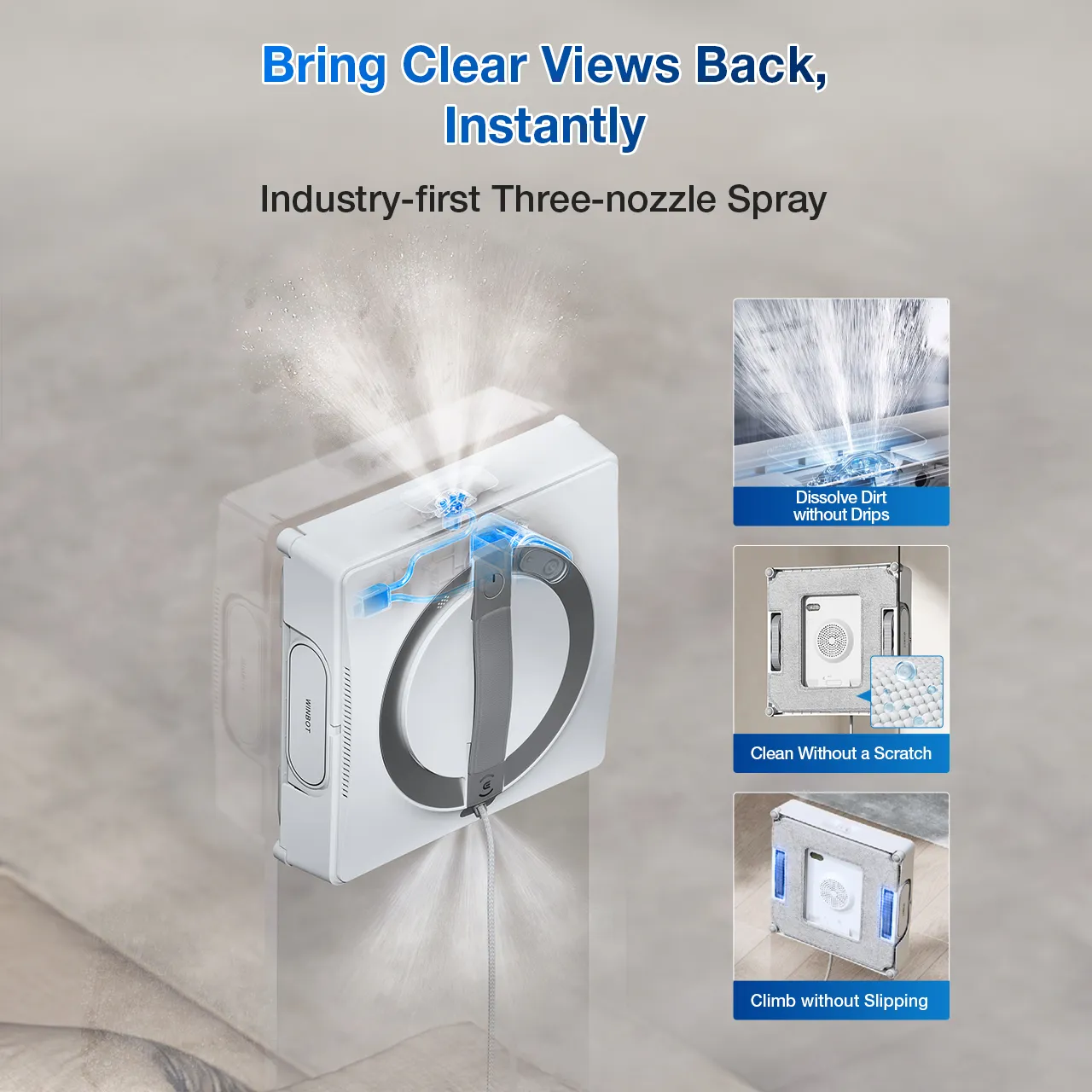

2) Fully upgraded Three-nozzle Wide-angle Spray Atomization Technology with wet mop for window cleaning
3) Intelligent climbing system to avoid slipping

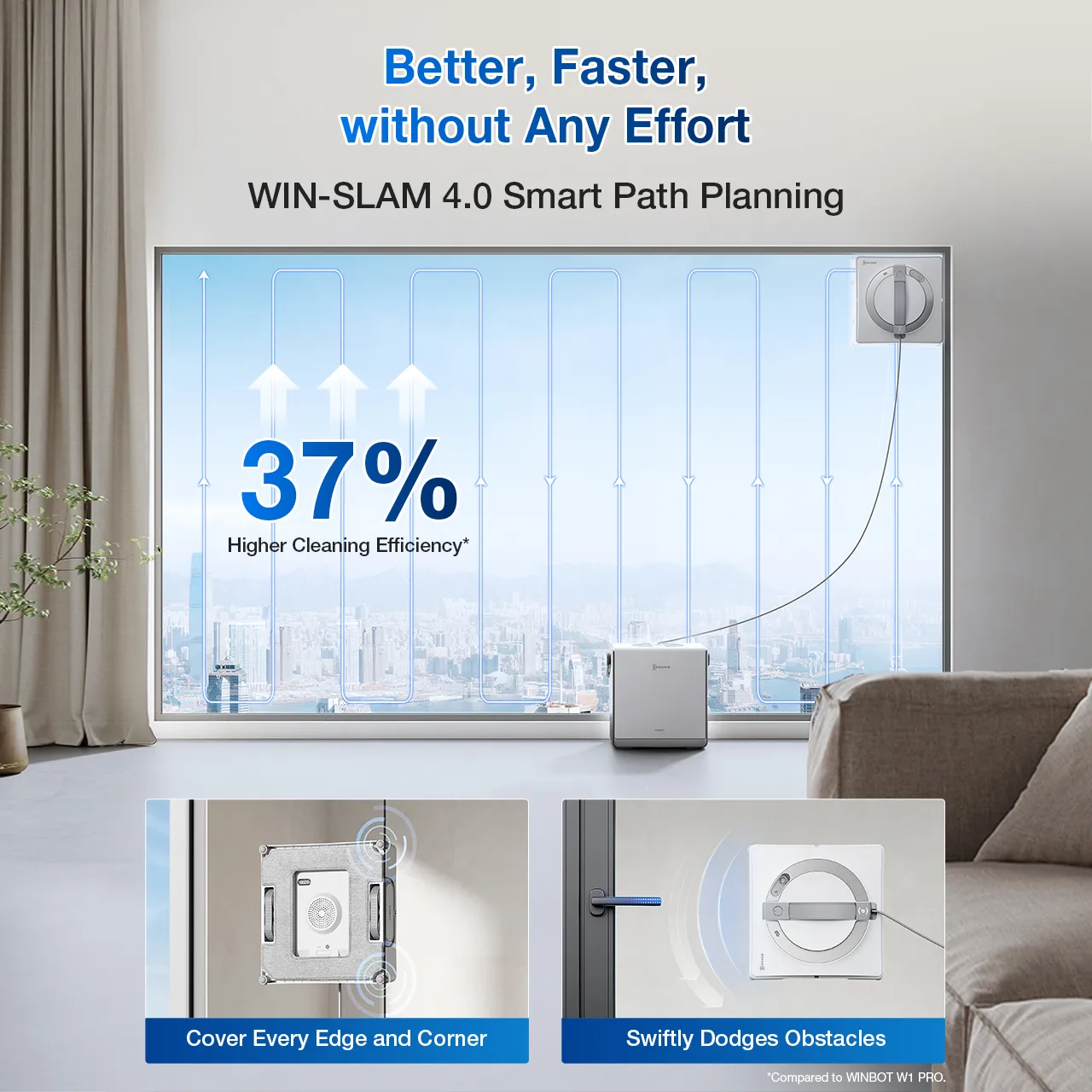

4) Increase 37% efficiency through the brand new WIN-SLAM 4.0 intelligent planning
5) Multiple cleaning modes at your fingertips with the ECOVACS HOME App

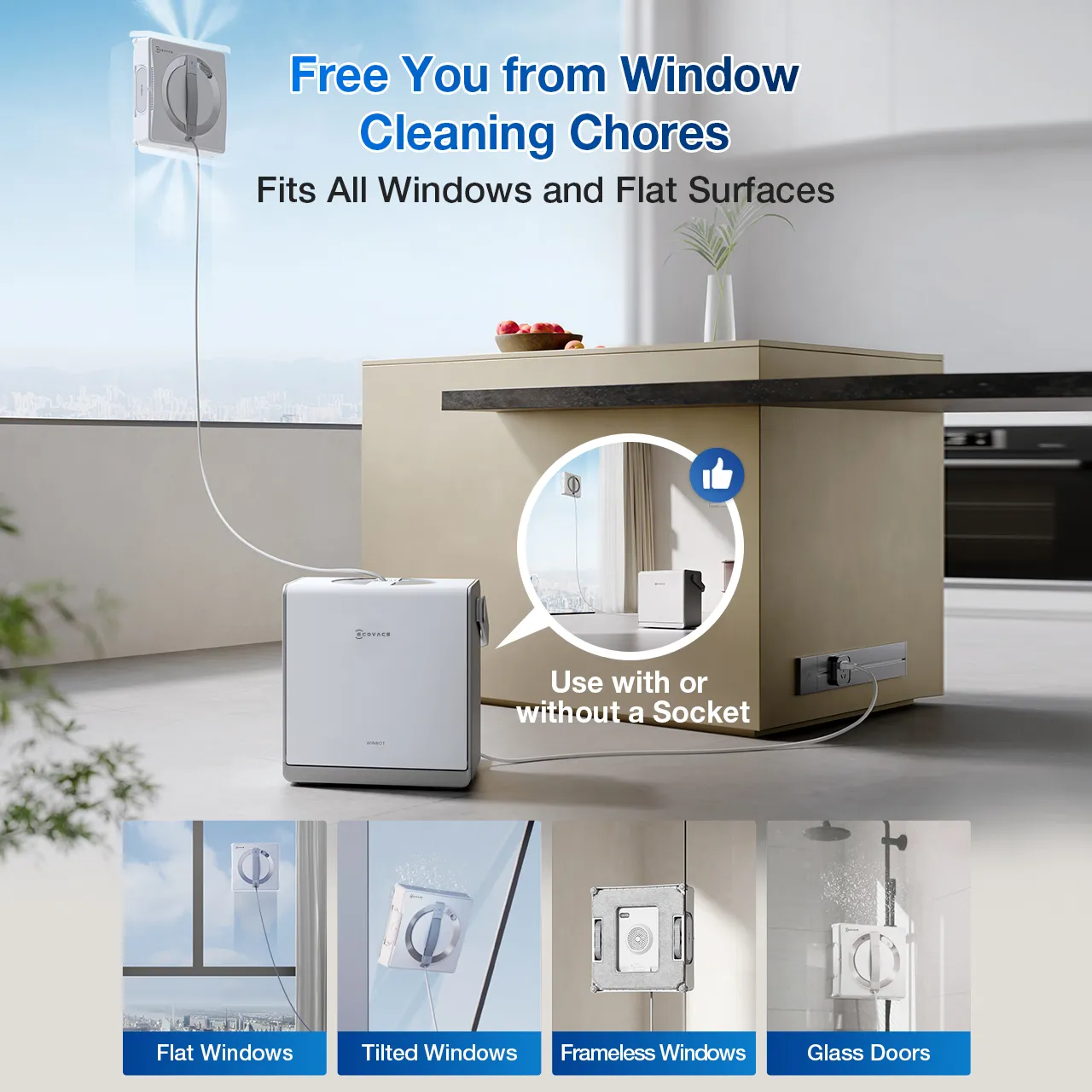

3. One WINBOT for all windows
1) Adaptive to various window types
2) Two powering modes available to meet different charging needs
4. 12-stage protection
1) 8-hardware-based fall protection measures
2) 3-stage intelligent fall protection
3) Accidental damage insurance
Revolutionary Cleaning Power: Ultimate Convergence of BLAST and OZMO ROLLER
Unmatched Vacuuming Efficiency Redefined by BLAST Solution Mopping Technology
Unlock Premium Floor Cleaning Performance with OZMO ROLLER Mopping Technology
Powered by ARClean Anti-Tangle Side Brush, ZeroTangle 3.0 achieves truly tangle-free cleaning
Effortless Window Cleaning with No Restrictions

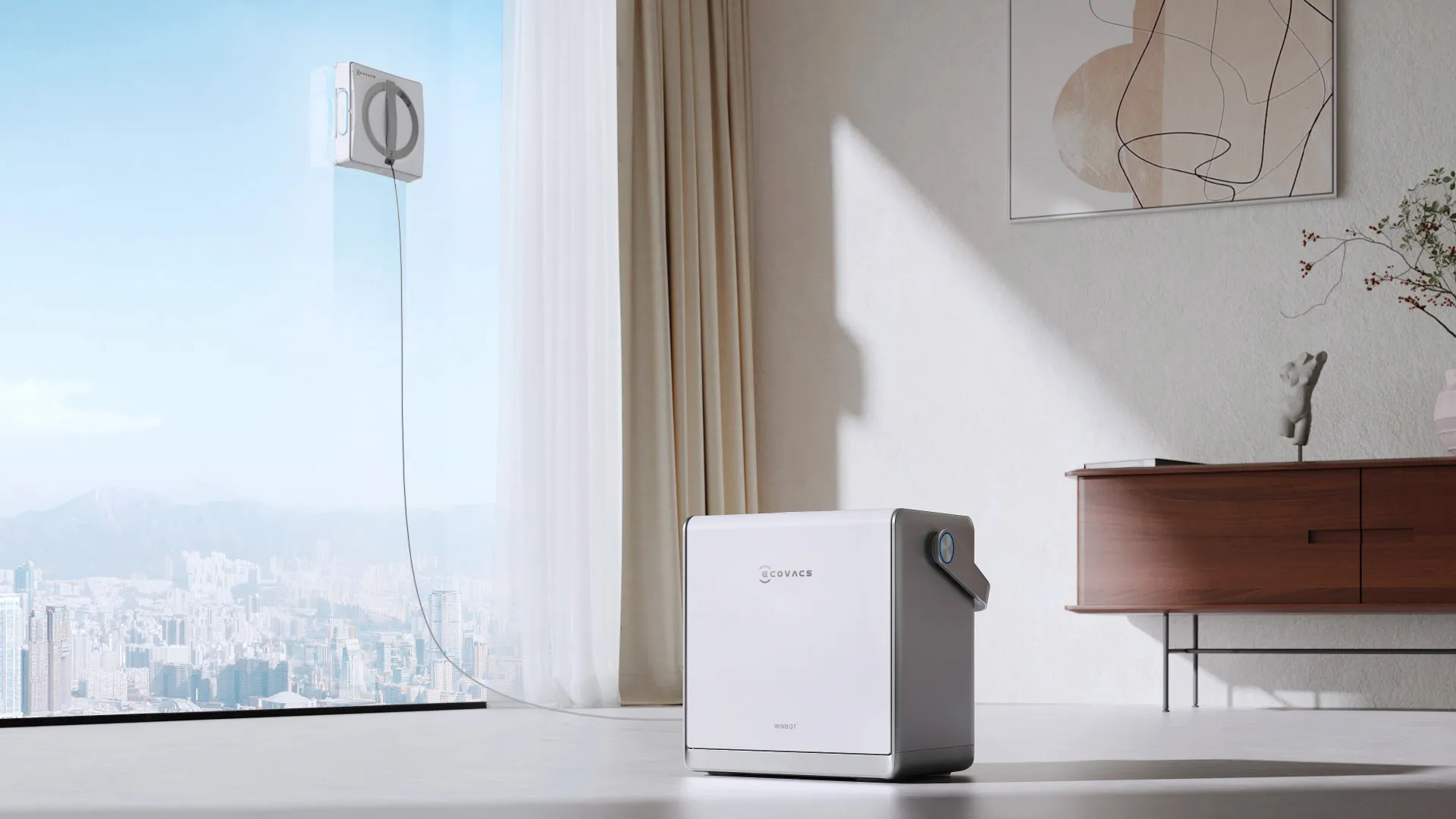

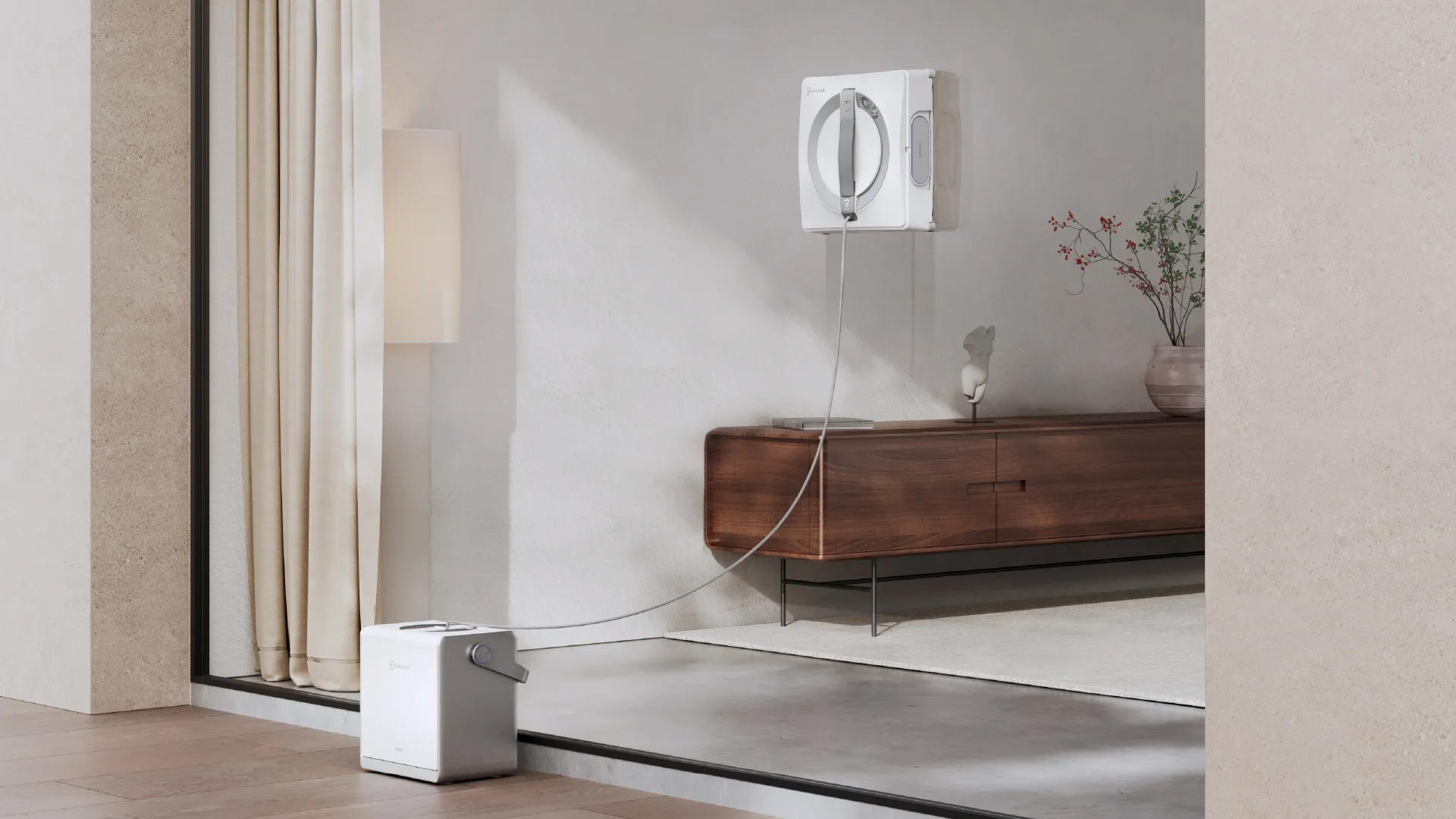

Unique, cutting-edge window cleaning station, a multi-functional dock to free your hands
Revolutionary cleaning powered by innovation for clearer than ever windows

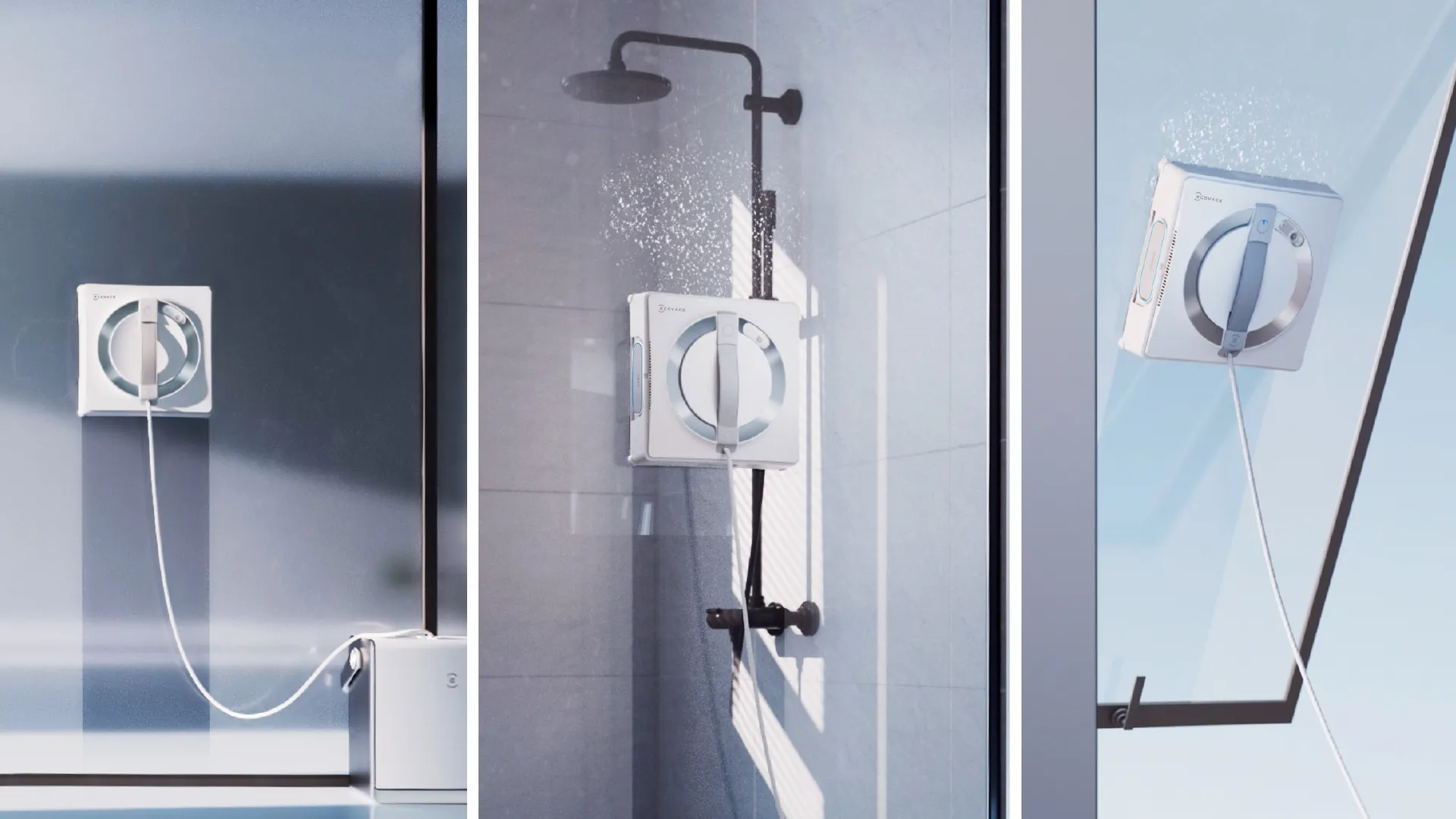

One WINBOT for all windows

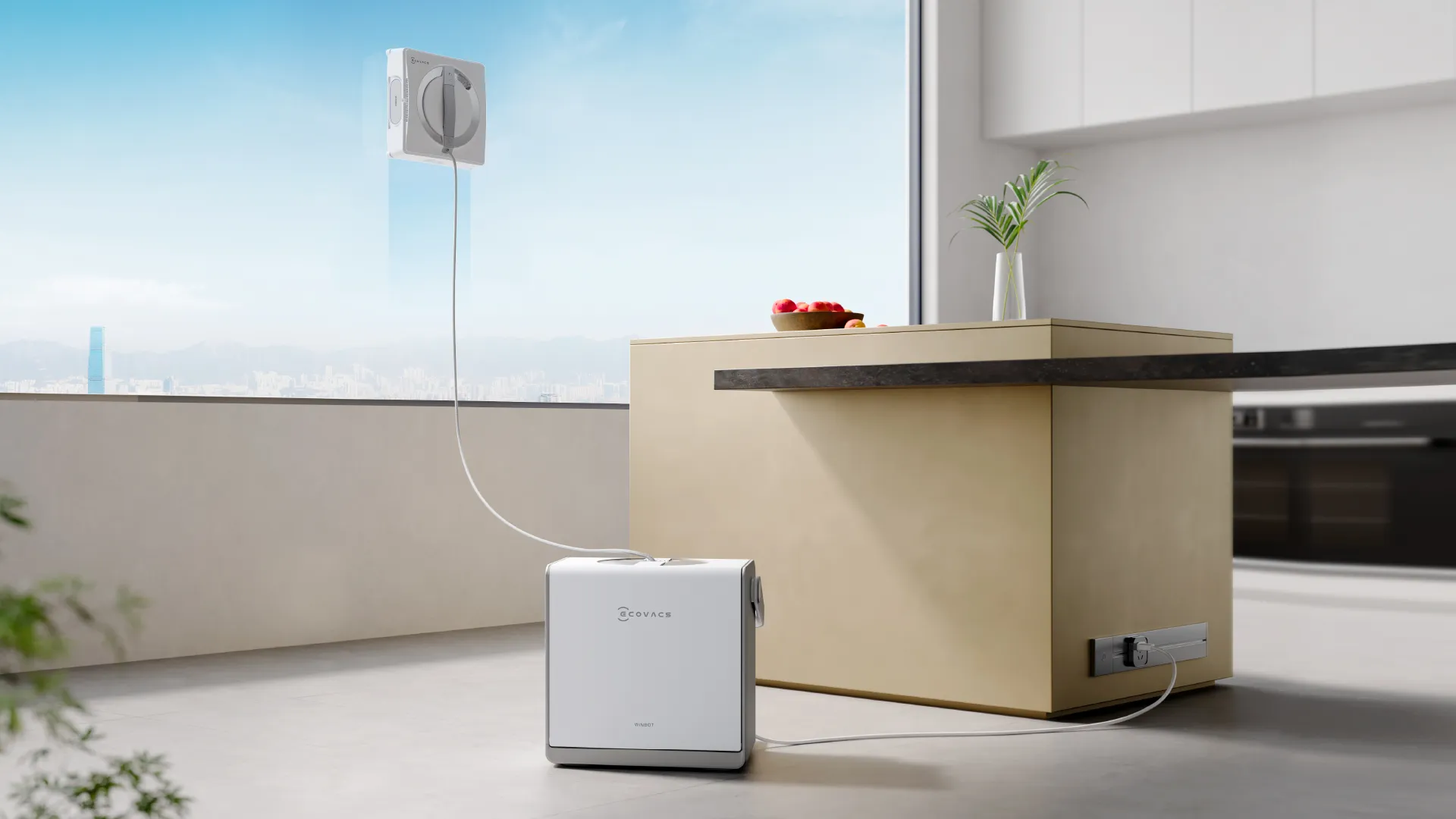

Two powering modes available to meet different charging needs

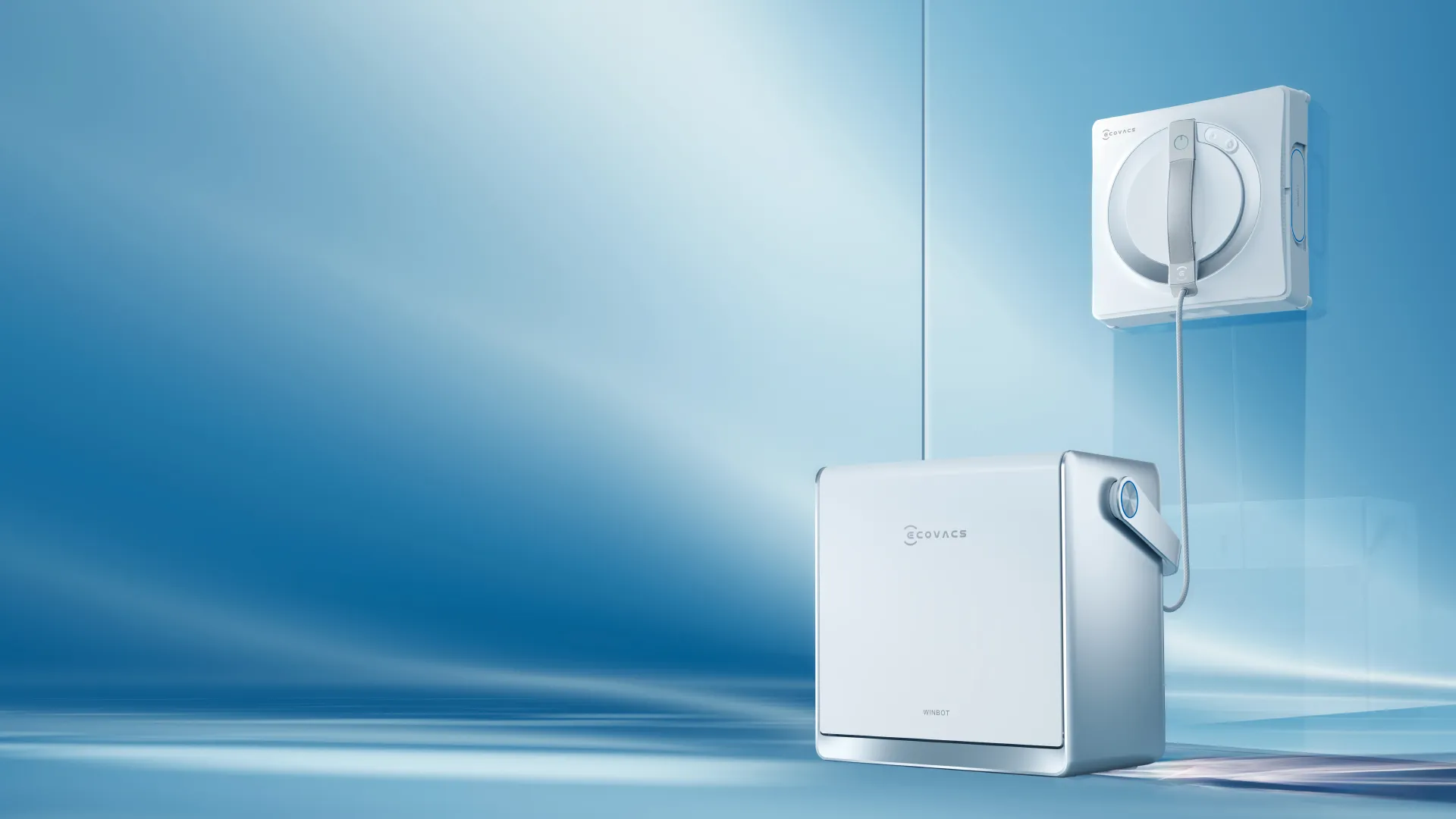

WINBOT W2 PRO OMNI Window Cleaning Robot (Portable Station, Auto Spray, Quiet)
GEN INFO
- Minimum Window Size
- 11.81*15.75 (in)
- Applicable Window
- all types of flat windows
Cleaning System
- Auto Spray (Y/N)
- Yes
- Manual Spray (on APP)
- Yes
- Spray Width（cm）
- Beyond the edge ≤1cm
- Spray Length (front)（cm）
- ≤30
- Spray Uniformity (variance）
- ≤0.5
- Ratio of Spray Coverage
- ≥70%
- Max Accumulated Spray Area of Water Tank（Fast Mode, ㎡）
- 40±3
- Method of Spray
- 6
- Self-adaptive Spray Volume (Y/N)
- Yes
- Number of Spray Nozzles
- with plastic nozzles
- Material of Wiping Pad
- Micorfiber（both sides）
- Water Tank Empty Reminding (Y/N)
- Yes
- Frame Distance Detection (Y/N)
- Yes
- Water Tank Capacity（ml）
- 60±5
CLEANING EFFICIENCY & INTELLIGENCE
- Cleaning Mode
- Fast Cleaning Mode, Deep Cleaning Mode, Thorough Cleaning Mode, Edge Cleaning Mode, Spot Cleaning Mode, Zone Cleaning Mode, Heavy-Duty Cleaning Mode
- Intelligent Route Planning
- Yes
- Power-off protection
- Yes
- Auto Back to Start Point
- Yes
- Voice Report
- Yes
PARTS
- Length of Power cord (m)
- 5.5
- Length of Safety Rope (m)
- 1
- Length of Extension Cord (m)
- No
- Cleaning Solution (ml)
- No
- Cleaning Cloth Size (m㎡)
- 260mm*251mm
SPEC DATA
- Robot Size (mm)(l/w/h)
- 271*271*77
- Weight of Robot (kg)
- 1.6±0.1
- Station Dimension (mm)(l/w/h)
- 312*215*327
- Weight of Station (kg)
- 5.5±0.2
- Working Time per Charge (min)
- 110min±10%
- Charging Time (H)
- ≤3h
- Working Speed (min/㎡)
- 1min45s±15s（Fast Mode）
- Battery Specifications (Type, mAh)
- Lithium 4500mah
- Battery Voltage(V)
- 24
- Battery Weight (g)
- ≈1330
- Power off protection time（Full charge）
- 30min
PACKAGE
- Gross Weight of Carton Box (Kg)
- 8.5
- Size of Carton Box (mm)(l/h/w)
- 380*297*406
Climbing System
- Split Drive Tech (Y/N)
- No
- Intelligent Climbing System
- Yes
- Type of Blower Fan
- Brushless Motor
- Suction Power while moving（Pa）
- 2800
- Max. Suction Power（Pa）
- 5500±500
- Cleaning Efficiency in Default Mode (1X1㎡)
- 1min45s±15s（Fast Mode）
Intelligence
- Path Planning Tech
- WIN-SLAM 4.0
- Cleaning Mode
- Fast Cleaning Mode Deep Cleaning Mode Thorough Cleaning Mode Edge Cleaning Mode Spot Cleaning Mode Zone Cleaning Mode Heavy-Duty Cleaning Mode
- Return to Initial Spot(Y/N)
- Yes
- Min. Detectable Height of Obstacle（mm）
- 4
- Min. Detectable Height of Frame（mm）
- 2
- Frame Detection (Y/N)
- Yes
- Breakpoint Continuation (Y/N)
- Yes
- APP Control
- Yes
- Manual Control (on APP)
- Omnidirectional remote control
Applicable Working Conditions
- Min. Window Size (cm)
- 30*40
- Applicable Window Type
- all types of flat windows
- Applicable Frame Type
- with Frame & Frameless
- Min. Glass Thickness (mm)
- 3
Dimension
- Dimension of WINBOT(mm, L*W*H)
- 271*271*77
- Weight of WINBOT (kg)
- 1.6±0.1
Auto Taking-up
- Auto Take-up Rope (Y/N)
- Yes
- Speed Control of Take-up (Y/N)
- Yes
- Load Detection of Take-up (Y/N)
- Yes
- Compound Cable (Y/N)
- Yes
- Length of DC cord (m)
- 5.5
- Auto releasing cord with low resistance(Y/N)
- Yes
- Safety lock for releasing cord (Y/N)
- Yes
Protection System
- Power-off Protection (Y/N)
- Yes
- Power-off Protection Duration (min)
- 30
- Auto return in low battery status (Y/N)
- Yes
- Auto take-up in low battery status (Y/N)
- Yes
- Extra Weight for Protection (Y/N)
- Yes
- Weight of Station（kg）
- 5.5±0.2
- Suction Cup (Y/N)
- Yes
- El control of Suction Cup(Y/N)
- Yes
- Max. Adsorption Power（N）
- ≥800
Main SPEC(Power Supply)
- Dimension of WINBOT(mm, L*W*H)
- 271*271*77
- Battteries Capacity (Type, mAh)
- Lithium 4500mAh
- Battery Nominal Voltage (V)
- 24
- Typle of Blower Fan
- Brushless Motor
- Battteries Capacity (Type, mAh)
- 98.55
- Weight of WINBOT (kg)
- 1.6±0.1
- Weight of Batteries (g)
- ca. 1330
- Number of Batteries
- 12
- Rated Power (W)
- 126
- Powering Mode
- Battery-powered operation /Plugged-in operation
- Rated Voltage (V)
- 24
- Charging Time (H)
- ≤3
- Cleaning Efficiency in Default Mode (1X1㎡)
- 1min45s±15s（Fast Mode）
- Battery Life (min)
- 110min±10%
- One-time Working Area in Fast Cleaning Mode（㎡）
- ca. 55㎡
- One-time Working Area in Deep Cleaning Mode（㎡）
- ca. 22㎡
Others（Accessories）
- Control Panel (Y/N)
- Yes
- One-key Switch on & off (Y/N)
- Yes
- One-key Return (Y/N)
- Yes
- Voice Reminder (Y/N)
- Yes
- Dimension of Wiping Pad (LengthxWidth mm)
- 260*251
- Support OTA Upgrade (Y/N)
- Yes
- Length of DC cord (m)
- 5.5
- Length of AC cord (m)
- 1.8
- Length of Backup Safety Rope (m)
- 1
- Filling Nozzle (Y/N)
- Yes
Inbox items
- User Manual
- 1
- Number of Wiping Pad
- 2
- Carabiner
- 1
- Safety Rope
- 1
- CONTENTS
- WINBOT*1, Station*1, Safety Rope*1, Carabiner*1, Wiping Pad*2, Cleaning Solution*1（Empty Bottle）, User Manual*1
- WINBOT
- 1
- Station
- 1
Packaging Info
- Net Weight (Kg)
- 7.2
- Gross Weight (Kg)
- 8.5
- Dimension of Packaging (mm, L*W*H)
- 380*297*406
